Shop HUBBELL WIRING DEVICE-KELLEMS

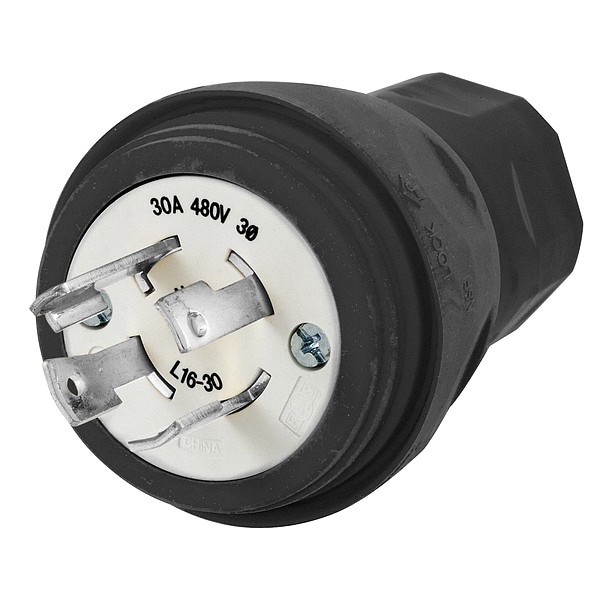

Watertight Locking Plug, L16-30P, 30 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Black

  • Mfr # HBL28W76BK

  • Zoro # G0069679

product price:  $88.56
/ea

Key Features

Current Rating
30 A
Phase
Three
Number of Poles
3
Number of Wires
4
Number of Blades
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL28W76BK
Zoro #
G0069679
UPC #
783585131733
Country of Origin
United States

Dimensions

Cord Size
0.375 in to 1.125 in
Outside Diameter
2.77 in
Body Length
2.77 in
For Minimum Cable Diameter
0.375 in
For Maximum Cable Diameter
1 in
Height
3.94 in
Width
2.77 in
Length
2.77 in
Wire Size
Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S
Dimensions
2.77 in x 2.77 in x 3.94 in
Maximum Wire Size
8 AWG
Minimum Wire Size
18 AWG
Overall Length
2.77 in

Details

Item
Watertight Locking Plug
NEMA Plug Configuration
L16-30P
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black
Standards
ANSI, NEMA WD-1 and WD-6
Resistance Properties
Chemical Resistant, Impact Resistant, UV Resistant, Watertight
Material
Thermoplastic Elastomer, Valox
IP Rating
IP69K
Special Features
Moisture, Dust and Weather Resistant
Grade
Industrial
Blade Material
Nickel-Plated Brass
Polarized
Yes
Minimum Operating Temperature
-40 Degrees C
Housing Material
Thermoplastic Elastomer
Maximum Operating Temperature
140 Degrees F
Market
Industrial
Horsepower Rating
10 hp
Retainer Material
Clear Polycarbonate
Bushing Material
Black Elastomer
Contact Material
Nickel Plated Brass
Dielectric Strength
3500V AC
Body Material
Thermoplastic Elastomer
Amperage Rating
30 A
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous Mechanical - Cord Accommodation - 0.375"-1.000" (9.5-25.4)
Antimicrobial
No
NEMA Configuration
L16-30
Amps
30

Description

Locking Plug, Connection Orientation Straight, Current Rating 30 A, Housing Color Black, Housing Material Thermoplastic Elastomer, NEMA Plug Configuration L16-30P, Number of Blades 4, Number of Poles 3, Phase Three, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Watertight, Voltage Rating 480V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1 in, For Minimum Cable Diameter 0.375 in, Grade Industrial, Horsepower Rating 10 hp
