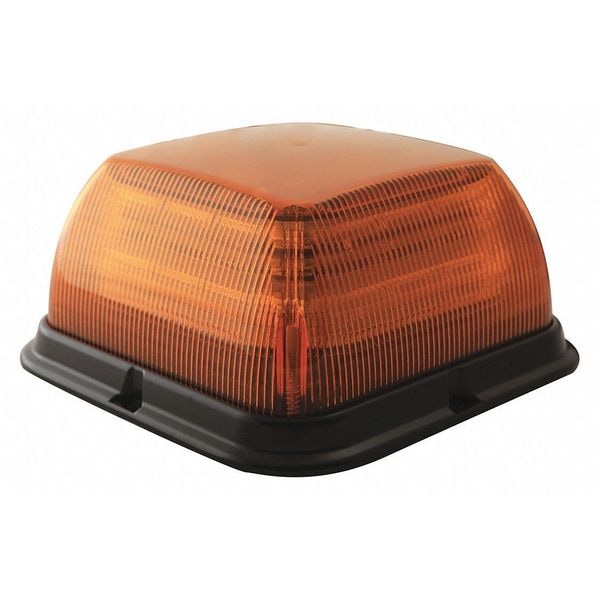

Beacon Light, Amber, 3-5/16" H

  • Mfr # EB7185AAA

  • Zoro # G2123499


product price:  $306.99
/ea
Free Shipping & Returns

Key Features

Features
Maintenance Free, Simulated Rotate Mode with Synchronization Capability
Lighting Technology
LED
SAE Class Rating
SAE J845 Class 1
Light Color
Amber
Standards
AMECA, CA T13, R10, RoHS Compliant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EB7185AAA
Zoro #
G2123499
UPC #
758379066904
Country of Origin
Taiwan, Province of China

Dimensions

Overall Width
6-1/2 in
Overall Height
3-35/16 in
Overall Depth
6 1/2 in
Overall Length
6-1/2 in

Details

Item
Beacon Light
Features
Maintenance Free, Simulated Rotate Mode with Synchronization Capability
Lighting Technology
LED
SAE Class Rating
SAE J845 Class 1
Light Color
Amber
Standards
AMECA, CA T13, R10, RoHS Compliant
Shape
Square
Light Pattern
Flashing
Mount Type
Bolt
Electrical Connection
Blunt Cut Wires
Current
8.6 A
Mount Style
Surface
Installation Type
Permanent
IP Rating
IP55
Voltage
12V DC, 24V DC
Compatible Vehicle Type
Universal
Includes
Gasket, Mounting Hardware
Light Output
Not Rated
Flashes per Minute
Variable
Housing Material
Aluminum
Lens Material
Polycarbonate
Current Drawn
8.6 A
Number of Flash Patterns
24
Power Source
Corded
Lens Color
Amber
Number of Heads
8
Number of Bulbs
48
Wattage
110 W
Installation Location
Roof
Vehicle Class
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
Wire Exit
Bottom
Minimum Operating Temperature
-22 Degrees F
Series
EB7185 Series
Maximum Operating Temperature
122 Degrees F

Description

Beacon Light, Light Type Flashing Beacon, Light Color Amber, Wattage 110 W, Lens Color Amber, Shape Square, Light Pattern Flashing, SAE Class Rating SAE J845 Class 1, Electrical Connection Blunt Cut Wires, Lighting Technology LED, Installation Type Permanent, Operating Voltage 12-24V DC, Overall Length 6 1/2 in, Overall Diameter Not Applicable, Overall Height 3 5/16 in, Overall Depth 6 1/2 in, IP Rating IP55, Compatible Vehicle Type Universal, Number of Heads 8
