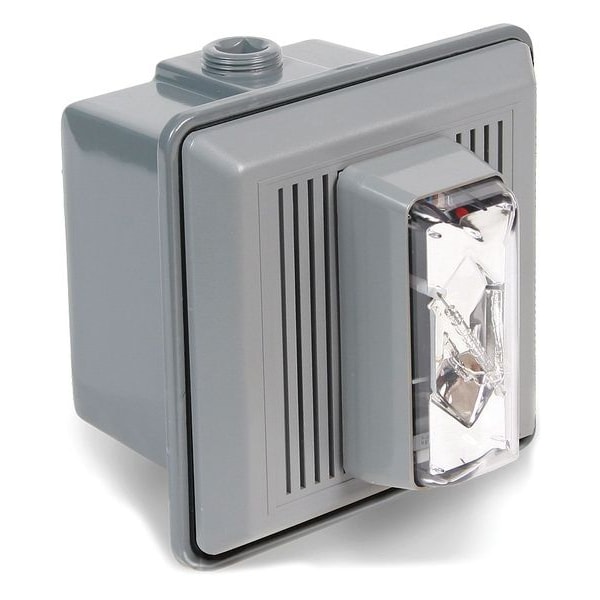

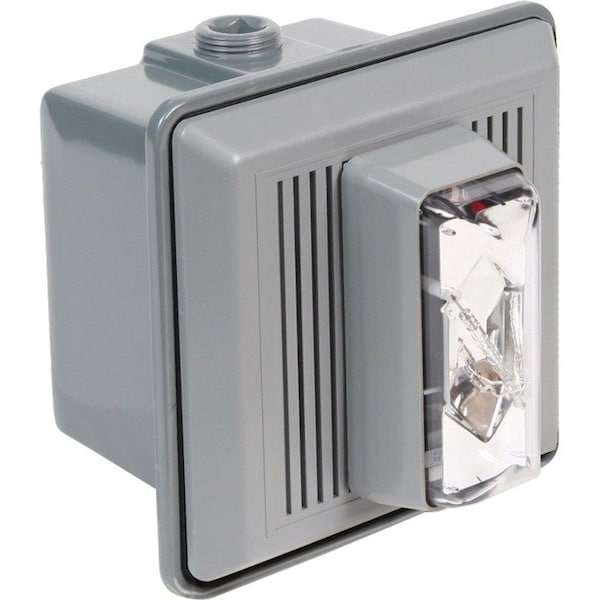

Horn Strobe, Horn, Continuous, 120V AC, 90 dB, Thermoplastic, Clear Lens, Gray Housing

  • Mfr # 868STRC-N5
  • Zoro # G7613225
product price:
$
444.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Thermoplastic
Mounting
Surface
Amps
148 mA
Color
Clear Lens, Gray Housing
Audible Alarm Type
Horn
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
868STRC-N5
Zoro #
G7613225
UPC #
782640239360
Country of Origin
Mexico

Dimensions

Height
5.5 in
Width
5.5 in
Depth
0.625 in
Overall Width
5 1/2 in
Overall Depth
5/8 in
Overall Length
5 1/2 in
Wire Rope Length
5 1/2 in
Length
5 1/2 in

Details

Item
Horn Strobe
Housing Material
Thermoplastic
Mounting
Surface
Amps
148 mA
Color
Clear Lens, Gray Housing
Audible Alarm Type
Horn
Voltage
120V AC
Standards
UL Listed
Indoor/Outdoor
Indoor
Decibels
90 dB
Sound Pattern
Continuous
Visual Indicator Type
Strobe
Vibrating
No
Current Drawn
148 mA
Flashes per Minute
60
Operating Temp.
32 Degrees to 120 Degrees F Outdoors
Housing Color
Gray
Light Output
150 CP
Lens Color
Clear
Power Source
Wire
Product Type
Horn and Strobe
Number of Sound Patterns
1
Alarm Volume @ 10 ft - Maximum
90 dB
For Location
Indoor
Light Intensity
150 CP
Operating Current
0.148 A
Connection Type
Wire Leads
Mounting Style
Surface Mount
Operating Temperature - Maximum
150 Degrees F
Vibration
No Vibration
Operating Temperature - Minimum
-31 Degrees F
Brightness Selection
Fixed Brightness
Sound Continuity
Continuous
Light Source
Xenon
Control Protocol
Direct Wire
Light Operating Mode
Strobe
Alarm Volume @ 1 m - Maximum
100 dB
Sound Style
Horn
Operating Voltage
120V AC
Power Source - TS Only
Wire
Power Source - old
Wire

Description

EDWARDS SIGNALING 868STRC-N5 is a horn strobe audible and visual signaling device. It combines a continuous horn with a xenon strobe in a surface-mount design, providing sound and light indication for applications using a direct-wired signaling device. The unit operates on 120V AC and features a thermoplastic housing with a clear lens and gray body for use in compatible applications per manufacturer specifications.

Key Features:

  • Audible and visual signal: horn and strobe combination
  • Sound output: 90 dB at 10 ft maximum; 100 dB at 1 m maximum
  • Sound type: continuous horn with 1 sound pattern
  • Light output: 150 CP xenon strobe
  • Flash rate: 60 flashes per minute
  • Power: 120V AC, direct wire, wire leads connection
  • Current draw: 148 mA (0.148 A)
  • Mounting: surface mount
  • Housing: thermoplastic, gray housing with clear lens
  • Size: 5.5 in H x 5.5 in W x 0.625 in D
  • Operating temperature: refer to manufacturer specifications for applicable temperature range and installation environment
  • Standards: UL Listed
