Shop EDWARDS SIGNALING

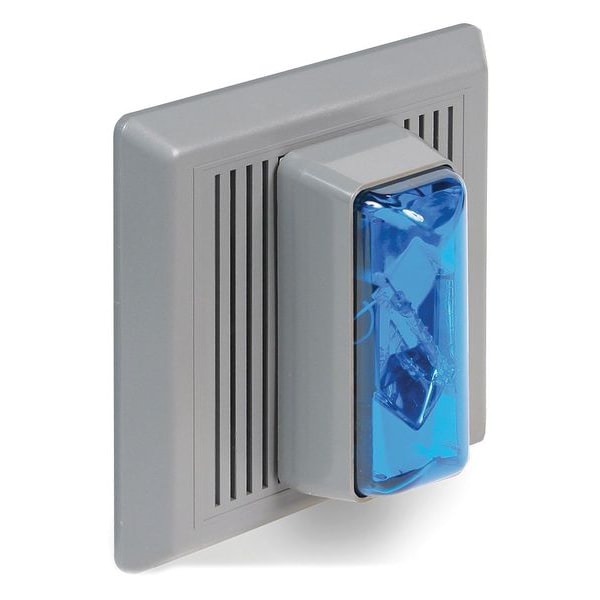

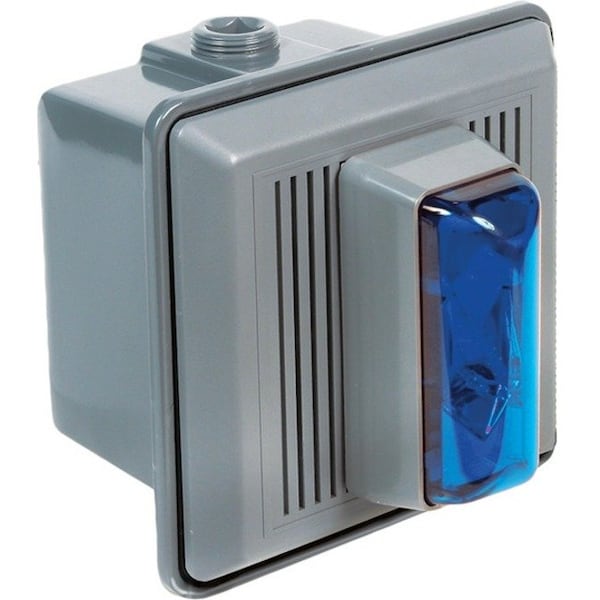

Horn Strobe, Horn, Continuous, 120V AC, 90 dB, Thermoplastic, Blue Lens, Gray Housing, Surface Mount

  • Mfr # 868STRB-N5

  • Zoro # G6198744

product price:  $424.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Thermoplastic
Mounting
Surface
Amps
148 mA
Audible Alarm Type
Horn
Standards
UL Listed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
868STRB-N5
Zoro #
G6198744
UPC #
782640239346
Country of Origin
Mexico

Dimensions

Depth
0.625 in
Height
5.5 in
Width
5.5 in
Overall Width
5 1/2 in
Overall Depth
5/8 in
Overall Length
5 1/2 in
Wire Rope Length
5 1/2 in

Details

Item
Horn Strobe
Housing Material
Thermoplastic
Mounting
Surface
Amps
148 mA
Color
Blue Lens, Gray Housing
Audible Alarm Type
Horn
Voltage
120V AC
Standards
UL Listed
Indoor/Outdoor
Indoor
Decibels
90 dB
Sound Pattern
Continuous
Housing Color
Gray
Vibrating
No
Lens Color
Blue
Flashes per Minute
60
Visual Indicator Type
Strobe
Current Drawn
148 mA
Light Output
20 CP
Operating Temp.
32 Degrees to 120 Degrees F
Power Source
Wire
Product Type
Horn and Strobe
Operating Current
0.148 A
Connection Type
Wire Leads
Light Operating Mode
Strobe
Operating Temperature - Minimum
-31 Degrees F
Number of Sound Patterns
1
Alarm Volume @ 10 ft - Maximum
90 dB
Mounting Style
Surface Mount
Operating Temperature - Maximum
150 Degrees F
For Location
Indoor
Sound Continuity
Continuous
Light Source
Xenon
Light Intensity
20 CP
Alarm Volume @ 1 m - Maximum
100 dB
Brightness Selection
Fixed Brightness
Vibration
No Vibration
Sound Style
Horn
Control Protocol
Direct Wire
Operating Voltage
120V AC
Power Source - TS Only
Wire

Description

EDWARDS SIGNALING 868STRB-N5 is a surface-mount horn strobe for indoor audible and visual signaling. It combines a continuous horn with a blue xenon strobe in a gray thermoplastic housing and operates on 120V AC for direct-wire installation. This unit provides audible and visual signaling from a single device.

Key Features:

  • Audible alarm type: Horn with continuous sound pattern
  • Sound output: 90 dB at 10 ft maximum; 100 dB at 1 m maximum
  • Visual indicator: Blue strobe with xenon light source
  • Light output: 20 CP
  • Flash rate: 60 flashes per minute
  • Voltage: 120V AC
  • Current draw: 148 mA
  • Connection type: Wire leads
  • Control protocol: Direct wire
  • Mounting style: Surface mount
  • Housing material: Thermoplastic
  • Housing color: Gray
  • Lens color: Blue
  • Dimensions: 5.5 in. H x 5.5 in. W x 5/8 in. D
  • Location rating: Indoor
  • Standards: UL Listed
