Shop FEDERAL SIGNAL

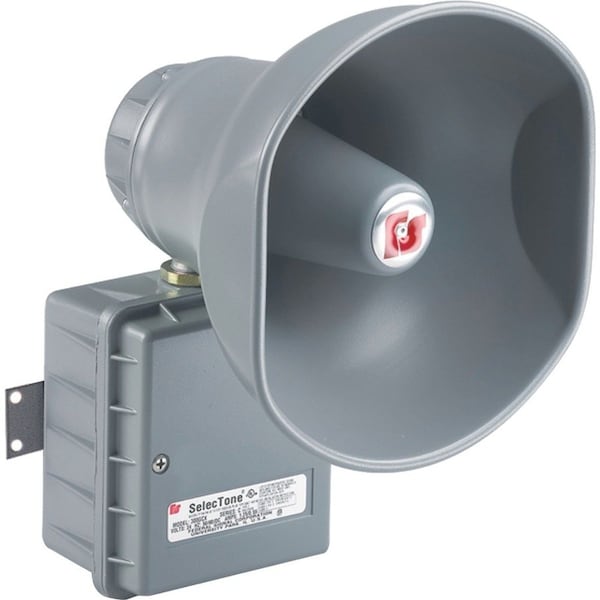

Signaling Device, Horn, Continuous, 120V AC, 0 to 110dB at 10 ft, Die-Cast Aluminum, Gray

  • Mfr # 300GCX-120

  • Zoro # G0973384

product price:
$
1,653.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Die-Cast Aluminum
Amps
0.67 AC
Diameter
8 in
Color
Gray
Audible Alarm Type
Horn
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
300GCX-120
Zoro #
G0973384
UPC #
782979200376
Country of Origin
United States

Dimensions

Diameter
8 in
Depth
8.5 in
Height
12.25 in
Width
7.3125 in
Overall Height
12 1/2 in
Overall Width
8 in
Overall Depth
8 1/2 in

Details

Item
Signaling Device
Housing Material
Die-Cast Aluminum
Amps
0.67 AC
Color
Gray
Audible Alarm Type
Horn
Voltage
120V AC
Standards
CSFM, cUL Listed, UL Listed
Indoor/Outdoor
Indoor, Outdoor
Decibels
0 to 110dB @ 10 ft
Sound Pattern
Continuous
Operating Temp.
-67 Degrees to 150 Degrees F
Visual Indicator Type
No Visual Indicator
Vibrating
No
Hazardous Class
I
Hazardous Division
2
Housing Color
Gray
Rating
NEMA 4X
Compatible Manufacturer Part Number
300CK, AM25CK, AM70CK, E-300CK, T-300CK
Mounting Style
Surface Mount
Power Voltage
120V AC
IP Rating
IP66, IP69K
NEMA Rating
NEMA 4X
For Location
Indoor, Outdoor
Dispersion - Conical
60 Degrees
For Hazardous Location
Class I, Division 2, Class II, Division 2
Driver Configuration
1-Way
Sensitivity
120 dBA
Power Style
Powered

Description

FEDERAL SIGNAL 300GCX-120 is a powered horn signaling device with a continuous sound pattern and no visual indicator. It operates on 120V AC and produces 0 to 110 dB at 10 ft. It is rated for audible signaling applications in indoor and outdoor locations and hazardous locations consistent with its listed ratings.

Key Features:

  • Audible alarm type: Horn with continuous sound output.
  • Sound level: 0 to 110 dB at 10 ft; sensitivity: 120 dBA.
  • Power input: 120V AC; current draw: 0.67 AC.
  • Housing material: Die-cast aluminum; housing color: Gray.
  • Mounting: Surface mount.
  • Location rating: Indoor and outdoor.
  • Hazardous location rating: Class I, Division 2; Class II, Division 2.
  • Enclosure ratings: IP66, IP69K, NEMA 4X.
  • Operating temperature: -67 to 150 degrees F.
  • Standards: CSFM, cUL Listed, UL Listed.
  • Overall dimensions: 8 in. diameter, 8-1/2 in. depth, 12-1/2 in. height.
