Shop EEMAX

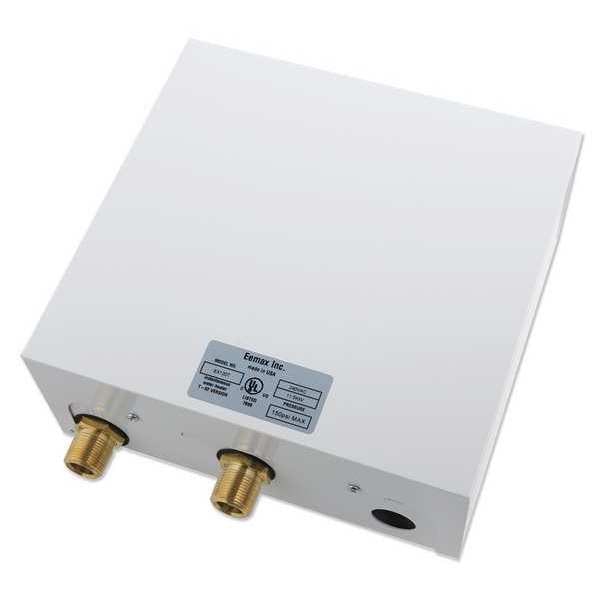

Both Electric Tankless Water Heater, Undersink, 105 Degrees to 110 Degrees F, 240VAC, 1 Phase

  • Mfr # EX190TC ML

  • Zoro # G7461921

product price:
$
730.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Water Heater Design
Point-of-Use
Voltage - Water Heaters
240V
Watts - Water Heaters
19KW
Amps - Water Heaters
80
Phase - Water Heaters
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EX190TC ML
Zoro #
G7461921
UPC #
091654901010
Country of Origin
United States

Dimensions

Width
10-1/2"
Height
10"
Depth
3"
Wire Size
8 AWG
Overall Height
10.25 in
Overall Depth
4.5 in
Overall Width
10.75 in
Manufacturer Warranty Length
1 yr on Parts, 5 yr Limited on Leaks
Hot Outlet Size
3/4 in
Cold Inlet Size
3/4 in

Details

Water Heater Design
Point-of-Use
Voltage - Water Heaters
240V
Watts - Water Heaters
19KW
Amps - Water Heaters
80
Phase - Water Heaters
1
Temp. Range - Water Heaters
105 Degrees to 110 Degrees F
Min. Flow Activation
0.3 gpm
Water Heater Application
Undersink
Commercial / Residential
Both
Item
Electric Tankless Water Heater
Temp. Range
105 Degrees to 110 Degrees F
Temp. Rise @ 1.5 GPM
86.5 Degrees F
Includes
Three Aerators
Item - Water Heaters
Electric Tankless Water Heater
Voltage
240VAC
Phase
1
Water Connection
3/4" NPT
Mounting
Vertical
Pressure Range
40 to 150 psi
Temp. Rise @ 2.5 GPM
52 Degrees F
Amps AC
80 A
Standards
ANSI Z358.1, NSF/ANSI 372, UL Listed
Temp. Rise @ 4.0 GPM
32.4 Degrees F
Features
+/-1 Degrees F Temperature Stability, Field Serviceable Replaceable Cartridge Element
Elements
Dual Replacement Cartridge Insert
Max. Flow Rate
3 gpm
Temp. Rise @ 2.5 GPM - Water Heaters
52 Degrees F
Residential / Commercial
Both
Environment
Indoor
Current
80 A
Housing Material Finish
Powder Coated
Mounting Orientation
Vertical
Market
Commercial, Industrial
Hot Outlet Type
NPT
Minimum Flow Activation
0.3 gpm
Maximum Flow Rate
3 gpm
Mounting Type
Wall Mounting
Cord Conductor Gauge
8 AWG Wire
Temperature Rise @ Flow
32 Degrees F @ 4 gpm, 43 Degrees F @ 3 gpm, 52 Degrees F @ 2.5 gpm, 65 Degrees F @ 2 gpm, 87 Degrees F @ 1.5 gpm
Hot Outlet Connection Gender
Male
Power Consumption
19,000 W
Application
Single or Multi-Fixture
Element Material
Nichrome
Operating Voltage
240V AC
Minimum Water Pressure
40 psi
Minimum Delivered Temperature
105 Degrees F
Maximum Delivered Temperature
110 Degrees F
Maximum Water Pressure
150 psi
Adjustable Thermostat
No
Series
Series Two(TM)
Location of Use
Point-of-Use
Product Type
Electric Tankless Water Heater

Description

Electric Tankless Water Heater, Operating Voltage 240V AC, Phase Single, Cold Inlet Size 3/4 in, Maximum Flow Rate 3 gpm, Minimum Flow Activation 0.3 gpm, Overall Height 10.25 in, Overall Width 10.75 in, Overall Depth 4.5 in, Power Consumption 19,000 W, Maximum Delivered Temperature 105 Degrees F, Minimum Delivered Temperature 110 Degrees F, Adjustable Thermostat Yes, Current 80 A, Environment Indoor, Market Commercial, Industrial, Application Single or Multi-Fixture
