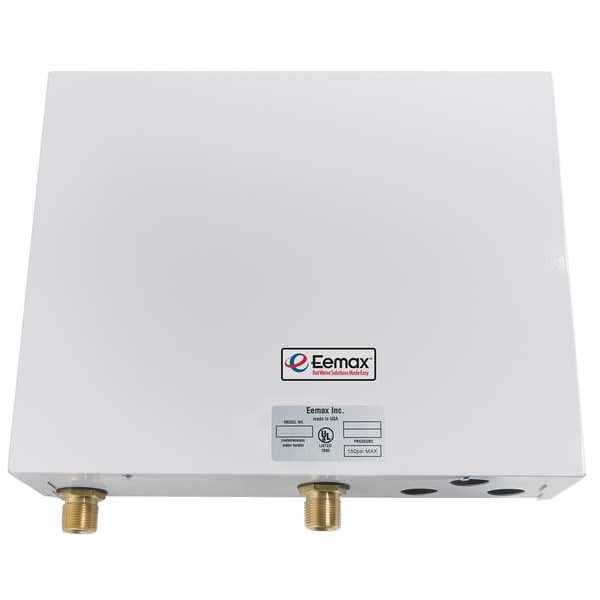

Electric Tankless Water Heater, 208V, 24000W

  • Mfr # EX240T2T

  • Zoro # G2348701


product price: $1,809.99
/ea
Free Shipping & Returns

Key Features

Voltage
208V
Watts
24KW
Temp. Range
100 Degrees to 140 Degrees F
Temp. Rise @ 2.5 GPM - Water Heaters
66 Degrees F
Phase
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EX240T2T
Zoro #
G2348701
UPC #
091654824265
Country of Origin
United States

Dimensions

Width
12.25 in
Wire Size
4 AWG
Depth
4.5 in
Height
18.25 in
Hot Outlet Size
1/2 in
Manufacturer Warranty Length
1 yr on Parts, 5 yr Limited on Leaks
Cold Inlet Size
1/2 in
Overall Width
18.25 in
Overall Height
12.25 in
Overall Depth
4.5 in

Details

Voltage
208V
Watts
24KW
Item
Electric Tankless Water Heater
Temp. Range
100 Degrees to 140 Degrees F
Temp. Rise @ 2.5 GPM - Water Heaters
66 Degrees F
Phase
3
Voltage - Water Heaters
208
Amps - Water Heaters
67 A
Item - Water Heaters
Electric Tankless Water Heater
Temp. Rise @ 1.5 GPM
108 Degrees F
Water Heater Application
General Purpose
Features
Built in Over Temp Protection, Field Serviceable Replaceable Cartridge Element
Mounting
Vertical
Max. Flow Rate
4 gpm
Temp. Rise @ 4.0 GPM
43 Degrees F
Elements
Triple Replaceable Nickel Chrome Cartridge Insert
Temp. Rise @ 2.5 GPM
66 Degrees F
Residential / Commercial
Commercial
Standards
ANSI Z358.1, NSF/ANSI 372, UL Listed
Amps AC
67
Min. Flow Activation
1.5 gpm
Pressure Range
25 to 150 psi
Temp. Range - Water Heaters
100 Degrees to 140 Degrees F
Commercial / Residential
Commercial
Water Heater Design
Point-of-Use
Water Connection
1/2 compression
Phase - Water Heaters
3
Watts - Water Heaters
24,000 W
Temperature Rise @ Flow
41 Degrees F @ 4 gpm, 55 Degrees F @ 3 gpm, 66 Degrees F @ 2.5 gpm, 82 Degrees F @ 2 gpm
Environment
Indoor
Water Connection Location
Bottom
Mounting Type
Wall Mounting
Element Material
Nichrome
Power Consumption
24,000 W
Application
Booster Applications, Multiple Lavatories, Restaurants and Other Food Service Requirements
Housing Material
Steel
Hot Outlet Type
Compression
Housing Material Finish
Powder Coated
Cold Inlet Type
Compression
Cord Conductor Gauge
4 AWG Wire
Mounting Orientation
Vertical
Current
67 A
Minimum Water Pressure
25 psi
Operating Voltage
208V AC
Minimum Delivered Temperature
140 Degrees F
Minimum Flow Activation
0.7 gpm
Maximum Delivered Temperature
100 Degrees F
NEMA Rating
N4, N4X
Market
Commercial, Industrial
Maximum Water Pressure
150 psi
Maximum Flow Rate
4 gpm

Description

Electric Tankless Water Heater, Operating Voltage 208V AC, Phase Three, Cold Inlet Size 1/2 in, Maximum Flow Rate 4 gpm, Minimum Flow Activation 0.7 gpm, Overall Height 12.25 in, Overall Width 18.25 in, Overall Depth 4.5 in, Power Consumption 24,000 W, Maximum Delivered Temperature 100 Degrees F, Minimum Delivered Temperature 140 Degrees F, Current 67 A, Environment Indoor, Market Commercial, Industrial
