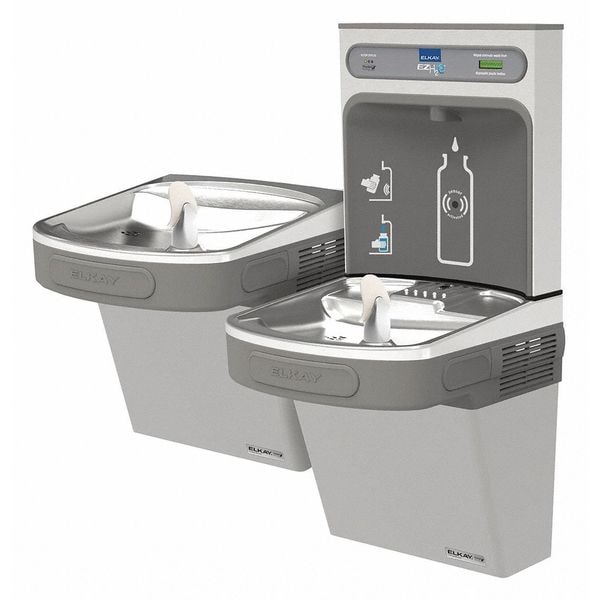

Elkay Indoor, Yes ADA, Drinking Fountain with Bottle Filler LZSTLG8WSLK - main

Indoor, Yes ADA, Drinking Fountain with Bottle Filler

  • Mfr # LZSTLG8WSLK

  • Zoro # G5444209

product price:  $3,307.99
/ea
Free Shipping & Returns

Key Features

Indoor / Outdoor
Indoor
Voltage
115V/60Hz
Number of Levels
2
Cold Water Capacity
8.0 gph
ADA Compliant
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LZSTLG8WSLK
Zoro #
G5444209
UPC #
094902014685
Country of Origin
United States

Dimensions

Depth
36.75"
Height
39.0625"
Width
19"
Bottle Filler Depth
3 5/8 in
Bottle Filler Width
17 7/8 in
Drain Outside Diameter
1 1/4 in
Mounting Hole Diameter
7/16 in
Overall Depth
19 in
Overall Width
36 3/4 in
Overall Height
39 1/8 in
Manufacturer Warranty Length
1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System

Details

Indoor / Outdoor
Indoor
Item
Drinking Fountain with Bottle Filler
Voltage
115V/60Hz
Number of Levels
2
Cold Water Capacity
8.0 gph
ADA Compliant
Yes
Includes
Filter
Standards
ADA and ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, GreenSpec, NSF/ANSI 372, NSF/ANSI 42, NSF/ANSI 53, NSF/ANSI 61, UL 399
Vandal Resistant
No
Full Load Current
6 A
Fountain Actuation
Front Pushbar/Side Pushbar
Includes Pet Bowl
No
Features
Green Ticker, Hands Free, High Efficiency, Laminar Flow, Real Drain, Visual Filter Monitor
Filter Status Indicator
Yes
Minimum Constant Stream Pressure
20 psi
Housing Color
Gray
Operating Voltage
115V AC
Refrigerant Type
HFC-134A
Power Consumption
360 W
Number of Mounting Holes
6
Includes Water Filter
Yes
Bottle Dispenser Actuation
Sensor
Bi-Level Field Adjustable
No
Environment
Indoor
Cooling Capacity
8 gph @ 50 Degrees F
Maximum Constant Stream Pressure
105 psi
Number of Bubblers
1
Power Source
Electric Corded
Temperature Adjustment
Factory Set but Adjustable
Station Type
Bi-Level Fountain, Bottle Filling Dispenser
Product Weight
104 lb
Antimicrobial
Yes
Maximum Cold Water Temperature
50 Degrees F
Minimum Supply Line Pressure
20 psi
Refrigeration
Refrigerated

Description

The Elkay EZH2O Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. NEW Versatile Bi-Level cooler design allows for standard cooler installation of high-left/low-right or the alternate reverse cooler installation.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
