Shop ELKAY

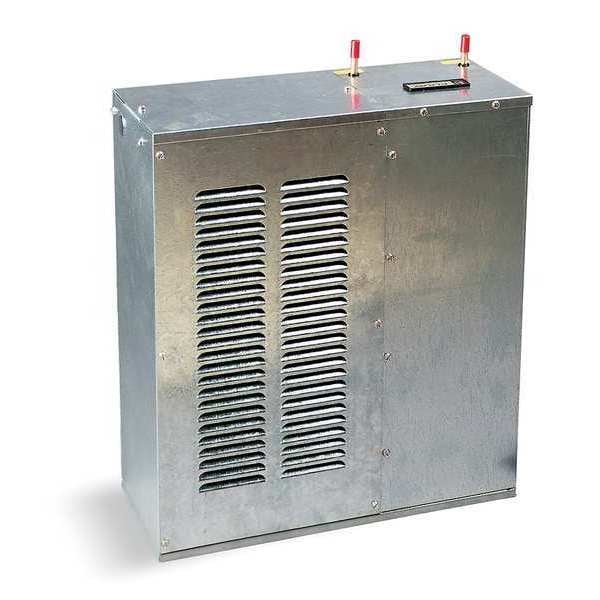

Remote Chiller Non-Filtered Refrigerated 10 GPH

  • Mfr # ER101Y

  • Zoro # G1912976

product price:  $1,612.99
/ea
Free Shipping & Returns

Key Features

Cold Water Capacity
10.0 gph
Dispenser Tank Size
2.0 gal
Compressor HP - Dispensers
1/4 hp
Full Load Amps - Dispensers
5.8
Water Connection - Dispensers
3/8 in OD Tubing
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ER101Y
Zoro #
G1912976
UPC #
094902162317
Country of Origin
United States

Dimensions

Dispenser Tank Size
2.0 gal
Height
22 in
Depth
7 7/8 in
Width
19 1/2 in
Overall Width
19 1/2 in
Overall Height
22 in
Manufacturer Warranty Length
1 yr Electrical Components and Water System, 5 yr Refrigeration System
Inlet Tube Outside Diameter
3/8 in
Outlet Tube Outside Diameter
3/8 in
Overall Depth
7 7/8 in

Details

Cold Water Capacity
10.0 gph
Compressor HP - Dispensers
1/4 hp
Full Load Amps - Dispensers
5.8
Water Connection - Dispensers
3/8 in OD Tubing
Refrigerant
R134A (CFC Free)
Full Load Amps
5.8 A
Compliance
Buy American Act, CAN/CSA C22.2 120, NSF 372 (Lead Free), NSF 61, UL 399
Item
Water Chiller
Material
Galvanized steel
GPH
10.0
Voltage
115
Connection
3/8" O.D.Tubing
Dispenser Voltage
120V AC
Reserve Gallons
2.00
Compressor
1/4 HP
Features
Flexible Installation Location of Refrigeration, Up to 15 ft from Dispensing Location, Converts Any Drinking Fountain into a Water Cooler, Fully Enclosed, Hermetically Sealed Refrigeration System, Ideal for Permanently Wired Applications, Large Capacity Tank and Increased Cooling Capacity for Demanding Applications
Standards
Buy American Act, CAN/CSA C22.2 No. 120, NSF 372 (Lead Free), NSF 61, UL 399
Compressor Horsepower
1/4 hp
Housing Finish
Galvanized
Maximum Supply Line Pressure
105 psi
Includes Water Filter
Water Filter Not Included
Power Consumption
490 W
Recommended Install Distance
Maximum 15 ft
For Station Type
Drinking Fountains
Housing Material
Steel
Refrigerant Type
R134A
Cooling Capacity
10 gph @ 50 Degrees F
Operating Voltage
115V AC
Minimum Supply Line Pressure
40 psi
Full Load Current
5.8 A
For Number of Stations
2
Temperature Adjustment
Adjustable
Maximum Flow Rate
10 gph
Ventilation Clearance
6 in Front, 3 in Rear, Installed in an Enclosure: 1 in Each Side, 3 in Rear and 3 in Above
Product Weight
74 lb
Environment
Indoor
Ventilation Clearance - Front
6 in
Ventilation Clearance - Top
3 in
Ventilation Clearance - Side
1 in
Accessory Type
Water Chiller
Recommended Install Distance - Maximum
15 ft
Ventilation Clearance - Rear
3 in

Description

Remote water chillers convert standard drinking fountains into a water cooler.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
Hazardous material
