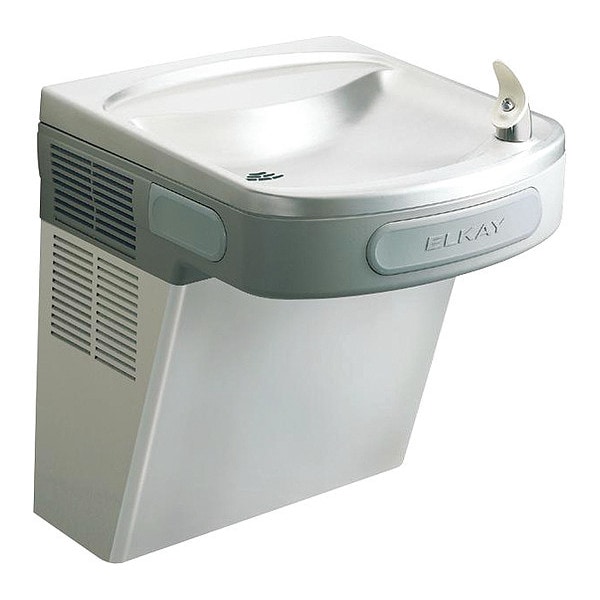

Elkay On-Wall Single Drinking Fountain, 1 Level, 18.375" D, 19.8125" H, 19" W LZS8S - main

On-Wall Single Drinking Fountain, 1 Level, 18.375" D, 19.8125" H, 19" W

  • Mfr # LZS8S

  • Zoro # G1108950

product price: $870.99
/ea
Free Shipping & Returns

Key Features

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
1
Voltage
115V/60Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LZS8S
Zoro #
G1108950
UPC #
094902246994
Country of Origin
United States

Dimensions

Height
19.8125"
Width
19"
Depth
18.375"
Overall Height
19 7/8 in
Overall Width
18 3/8 in
Mounting Hole Diameter
7/16 in
Drain Outside Diameter
1 1/4 in
Manufacturer Warranty Length
1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System
Overall Depth
19 in

Details

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
1
Voltage
115V/60Hz
Material
Stainless Steel
Color
Stainless Steel
Refrigerant
R-134a
Full Load Amps
5A
Operation
Push Bar Fountain
Item
Single Drinking Fountain
Standards
ADA and ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, NSF/ANSI 372, NSF/ANSI 42, NSF/ANSI 53, NSF/ANSI 61, UL 399
Includes
Filter
Vandal Resistant
No
Cold Water Capacity
8.0 gph
Features
Fastenerless Integrated Drain Reduces Debris Accumulation, Hermetically Sealed Refrigeration System
Housing Material
Stainless Steel
Antimicrobial
No
Housing Color
Gray
Power Source
Electric Corded
Includes Water Filter
Yes
Station Type
Single Fountain
Full Load Current
5 A
Cooling Capacity
8 gph @ 50 Degrees F
Includes Pet Bowl
No
Fountain Actuation
Front Pushbar/Side Pushbar
Environment
Indoor
Bi-Level Field Adjustable
No
Temperature Adjustment
Factory Set but Adjustable
Refrigeration
Refrigerated
Power Consumption
370 W
Number of Bubblers
1
Minimum Supply Line Pressure
20 psi
Product Weight
54 lb
Operating Voltage
115V AC
Maximum Cold Water Temperature
50 Degrees F
Housing Finish
Plain
Minimum Constant Stream Pressure
20 psi
Maximum Constant Stream Pressure
105 psi
Refrigerant Type
R134A
Number of Mounting Holes
3

Description

The Elkay EZ models are our most popular water cooler series. These models offer easy-touch pushbar or sensor-activated controls and come standard with a Flexi-Guard Safety Bubbler. The extra deep basin minimizes splashing and features an integral drain.
