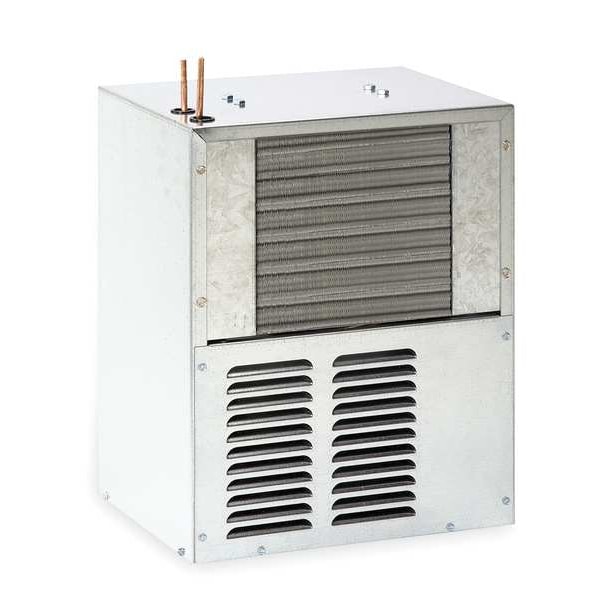

Elkay Remote Chiller Non-Filtered Refrigerated 8 GPH ECH8 - main

Remote Chiller Non-Filtered Refrigerated 8 GPH

  • Mfr # ECH8

  • Zoro # G2668075

product price: $1,014.99
/ea
Free Shipping & Returns

Key Features

Cold Water Capacity
8.0 gph
Dispenser Tank Size
0.4 gal
Compressor HP - Dispensers
1/5 hp
Full Load Amps - Dispensers
5.0
Water Connection - Dispensers
1/4 in OD Tubing
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ECH8
Zoro #
G2668075
UPC #
094902358239
Country of Origin
United States

Dimensions

Dispenser Tank Size
0.4 gal
Depth
10 1/4 in
Width
13 1/4 in
Height
17 3/8 in
Overall Height
17 3/8 in
Overall Width
13 1/4 in
Overall Depth
10 1/4 in
Manufacturer Warranty Length
1 yr Electrical Components and Water System, 5 yr Refrigeration System
Outlet Tube Outside Diameter
1/4 in
Inlet Tube Outside Diameter
1/4 in

Details

Cold Water Capacity
8.0 gph
Compressor HP - Dispensers
1/5 hp
Full Load Amps - Dispensers
5.0
Water Connection - Dispensers
1/4 in OD Tubing
Refrigerant
R134A (CFC Free)
Reserve Gallons
0.40
GPH
8.0
Full Load Amps
5
Item
Two Station Water Chiller
Material
Galvanized steel
Voltage
115
Dispenser Voltage
120V AC
Compressor
1/5 HP
Compliance
Buy American Act, CAN/CSA C22.2 120, NSF 372 (Lead Free), NSF 61, UL 399
Connection
1/4" O.D. Tubing
Features
Allows Flexible Installation Location of Refrigeration, Up to 15 ft from Dispensing Location, Converts Any Drinking Fountain into A Water Cooler, Fully Enclosed for Safe Mounting Anywhere, Hermetically Sealed Refrigeration System Provides Chilled Water, Ideal for Permanently Wired Applications, Provides Cool Water for Most Two Station Applications
Standards
Buy American Act, CAN/CSA C22.2 No. 120, NSF 372 (Lead Free), NSF 61, UL 399
Power Consumption
370 W
Temperature Adjustment
Adjustable
Full Load Current
5 A
Environment
Indoor
Product Weight
43 lb
Refrigerant Type
R134A
Ventilation Clearance
Cavity or Behind A Wall: 4 in Each Side, 4 in Above and Below, Open Area: 4 in Each Side
Housing Finish
Galvanized
Cooling Capacity
8 gph @ 50 Degrees F
Includes Water Filter
No
Maximum Supply Line Pressure
105 psi
Recommended Install Distance
Maximum 15 ft
For Number of Stations
2
Operating Voltage
115V AC
Maximum Flow Rate
8 gph
Housing Material
Steel
Minimum Supply Line Pressure
40 psi
For Station Type
Drinking Fountains
Compressor Horsepower
1/4 hp

Description

Remote water chillers convert standard drinking fountains into a water cooler.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
