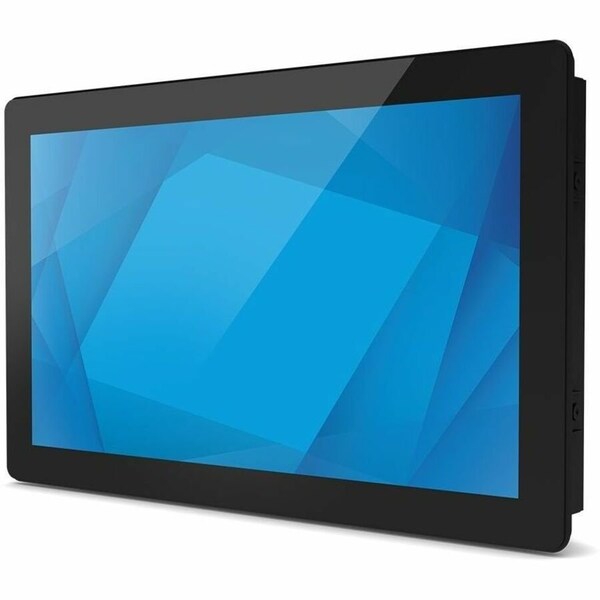

Elo 1594L 16" Class Open-frame LED Touchscreen Monitor - 16:9 - 25 ms E131375 - main

1594L 16" Class Open-frame LED Touchscreen Monitor - 16:9 - 25 ms

  • Mfr # E131375

  • Zoro # G916487909

product price:  $689.99
/ea
Free Shipping & Returns

Key Features

Max. Resolution
1,920 x 1,080
Width
15-1/2 in
Horizontal Frequency
30 kHz to 82 kHz
Color
Black
Response Time
25 ms
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
E131375
Zoro #
G916487909
UPC #
843173124179
Country of Origin
China

Dimensions

Width
15-1/2 in
Screen Size Class
16"
Depth
1.7"
Height
9.5"
Viewable Screen Size
15.6"

Details

Max. Resolution
1,920 x 1,080
Horizontal Frequency
30 kHz to 82 kHz
Color
Black
Response Time
25 ms
Non-operating Humidity Range
10% to 95% (Non-condensing)
Touchscreen Technology
Projected Capacitive
Features
OSD/Power Lock, On-screen Display (OSD)
HDMI
Yes
Response Time Details
25 ms Typical
Screen Mode
Full HD
Vertical Frequency
50 Hz to 75 Hz
Active Display Area (H x V)
13.55" x 7.62"
Operating Humidity Range
20% to 80% (Non-condensing)
Mount Type
Flush Mount, Rear Mount
Number of Simultaneous Touchpoints
10
Operating Power Consumption
13.23 W
USB
Yes
Maximum Power Consumption
13.23 W
Non-operating Temperature Range
-4°F (-20°C) to 140°F (60°C)
Package Contents
1594L 15.6" Open Frame Touchscreen HDMI cable VGA Cable RJ45 OSD Remote Touch USB Cable Quick Install Guide Flush Mount Brackets w/Screws EEI Label Japan Class-B TM info sheet
Horizontal Viewing Angle
178°
Color Supported
16.7 Million Colors
Backlight Technology
LED
Operating Temperature Range
32°F (0°C) to 104°F (40°C)
VESA Mount Compatible
Yes
Brightness
350 Nit
Environmentally Friendly
Yes
Panel Technology
Thin Film Transistor (TFT)
Impact Protection (IK) Rating
IK07
Product Type
Open-frame LED Touchscreen Monitor
Native Contrast Ratio
800:1
Multi-touch Screen
Yes
VESA Mount Standard
75 x 75
Aspect Ratio
16:9
DisplayPort
Yes
Vertical Viewing Angle
178°
