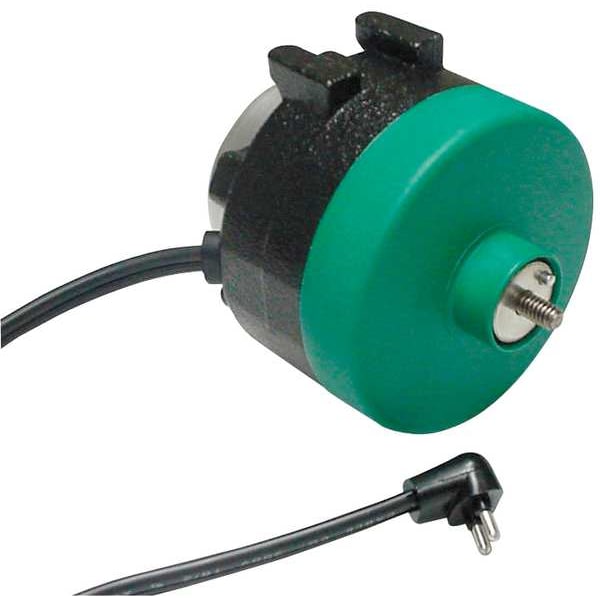

Unit Bearing Motor, 1/15 hp

  • Mfr # UTB1CC1551EM56

  • Zoro # G1914893

product price:
$
140.99
/ea
Free Shipping & Returns

Key Features

Motor Sub Application
Refrigerator/Freezer
Output Watts
14 to 16 W
HP
1/50
RPM Range
1,501-1,600
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
UTB1CC1551EM56
Zoro #
G1914893
UPC #
-
Country of Origin
United States

Dimensions

Shaft Length
7/16 in
Length Less Shaft
3 3/4 in
Bolt Circle Dia.
2 13/16 in
Overall Length
4 1/8 in
Body Dia.
3 1/2 in
Cord Length
18 in
Shaft Dia.
1/4 in
Bolt Circle Diameter
2 13/16 in
Frame Size
Non-Standard
Shaft Diameter
1/4 in
Body Diameter
3.5 in
Wire Rope Length
4 1/8 in
Length
4 1/8 in

Details

Motor Sub Application
Refrigerator/Freezer
Output Watts
14 to 16 W
HP
1/50
RPM Range
1,501-1,600
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Phase
Single
Voltage
115V AC
Motor Shaft Rotation
CWLE
Nameplate RPM
1,550
Frame
Non-Standard
Frame Material
Cast Iron
Motor Bearings
Unit
Motor Frame Material
Cast Iron
Motor Mounting Position
All Angle
Mounting Pattern
Bolt Circle
Hz
60 Hz
Capacitor Required
Capacitor Not Required
Motor Design
ECM
Max. Ambient Temp.
40 Degrees C
Plug Type
Round 2 Pin
Item
Unit Bearing Motor
Application
Condenser Fan
Ins. Class
A
Includes
Speed Nut, Mounting Screws
Motor Thermal Protection
Auto
Ambient Temperature
-40 to 40 Degrees C
Motor Enclosure Design
Totally Enclosed Air-Over
Full Load Amps
0.58 A
Motor Shaft Design
Threaded
Motor Mounting Type
Rear/Foot
Motor Application
HVAC/R
Motor Service Factor
1
Standards
UL Recognized for US and Canada
No. of Speeds
1
Usable @ 208V
Not Usable at 208V
Finish
Black Electro-Coat
Features
Beverage Merchandisers, For use with Condenser and Evaporator Fans, Ice Machines, Walk in Coolers and Freezers
Usable @ 200V
Not Usable at 200V
Mounting Holes
11
Product Type
Unit Bearing Motor
Ambient Temperature - Maximum
40 Degrees C
Wattage
14 to 16 W
Full Load Current @ 60 Hz
0.58 A
Drive Type
Direct Drive
Bearing Type
Unit
Insulation Class
A
Motor Enclosure Type
Totally Enclosed Air-Over
Mounting Position
Horizontal
Sub Application
Unit Bearing
Shaft Design
Threaded
Frequency
60 Hz
Number of Speeds
1

Description

ECM Unit Bearing Motor, Single Phase, Motor Design ECM, 1/50 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, 0.58 A Full Load Amps, Non-Standard Frame, Output Watts 14 to 16 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Foot, Motor Frame Material Cast Iron
