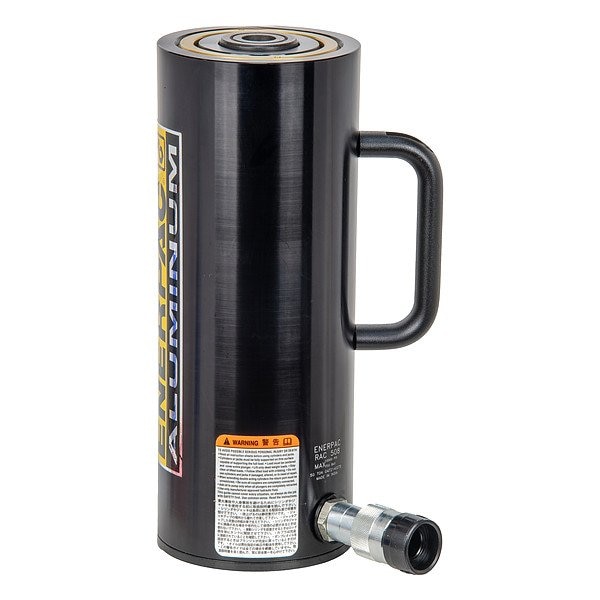

ALUMINUM CYLINDER 50T 200MM STROKE
Mfr # RAC508
Zoro # G312655698
product price: $3,396.99
/ea
Free Shipping & Returns
Key Features
Retracted Height
13.24 in
Extended Height
21.11 in
Includes
Coupler, Dust Cap, Handle
Cylinder Type
Lightweight
Outside Dia.
5.12 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
RAC508
Zoro #
G312655698
UPC #
0662005159949
Country of Origin
India
Dimensions
Retracted Height
13.24 in
Extended Height
21.11 in
Outside Dia.
5.12 in
Plunger Dia.
3.15 in
Plunger Thread Size
3.0-8 UNC- 2B
Stroke Length
7 7/8 in
Bore Dia.
3.74 in
Base Mounting Thread Size
M6
Nominal Stroke Length
7 7/8 in
Base Bolt Circle Dia.
4.33 in
Details
Includes
Coupler, Dust Cap, Handle
Cylinder Type
Lightweight
Body Material
Aluminum
Item
Cylinder
Single Acting/Double Acting
Single Acting
Max. Pressure
10,000 psi
Weight
27.3 lb
Oil Capacity Push
86.49 cu in
Effective Push Area
10.99 sq in
Nominal Capacity
50 ton
Max. Push Capacity
54.9 ton
Description
Cylinder, Single Acting, Lightweight, Aluminum, Nominal Capacity 50 ton, Max. Push Capacity 54.9 ton, Stroke Length 7 7/8 in, Nominal Stroke Length 7 7/8 in, Effective Push Area 10.99 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 86.49 cu in, Retracted Height 13.24 in, Extended Height 21.11 in, Outside Dia. 5.12 in, Plunger Dia. 3.15 in, Plunger Thread Size 3.0-8 UNC- 2B, Base Bolt Circle Dia. 4.33 in, Base Mounting Thread Size M6, Center Hole Dia. Not Applicable, Weight 27.3 lb
