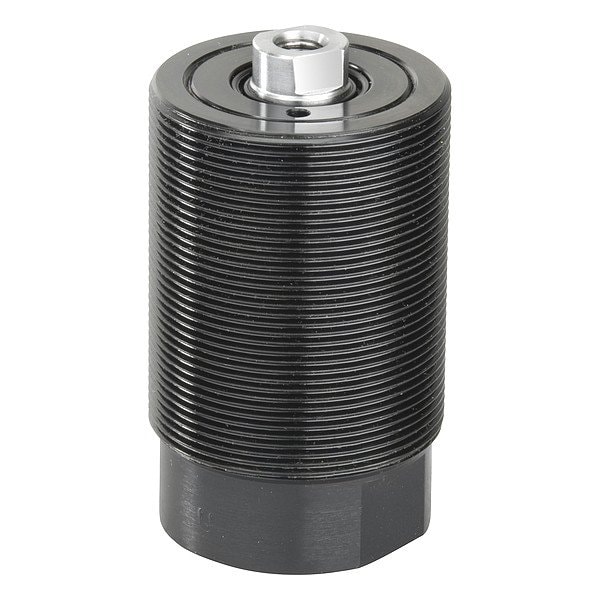

Hydraulic cylinder
Mfr # CDT18501
Zoro # G115488974
product price:Â $457.99
/ea
Free Shipping & Returns
Key Features
Body Material
Steel
Cylinder Type
Threaded Body
Extended Height
6.12 in
Stroke Length
1 31/32 in
Retracted Height
4.15 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CDT18501
- Zoro #
- G115488974
- UPC #
- 0662005125562
- Country of Origin
- United States
Dimensions
- Extended Height
- 6.12 in
- Stroke Length
- 1 31/32 in
- Retracted Height
- 4.15 in
- Outside Dia.
- 1.73 in
- Plunger Thread Size
- 0.313"-24 UNF
- Min. Hole Depth
- 0.47 in
Details
- Item
- Hydraulic Cylinder
- Body Material
- Steel
- Cylinder Type
- Threaded Body
- Single Acting/Double Acting
- Double Acting
- Body Thread
- 1 7/8"-16 UN
- Oil Capacity Pull
- 1.52 cu in
- Seal Material
- Polyurethane/Buna N
- Oil Capacity Push
- 0.91 cu in
- Effective Pull Area
- 0.77 sq in
- Mounting Style
- Threaded Body
- Effective Push Area
- 0.77 sq in
- Pressure Range
- 5,000 psi max
- Push Capacity @ 5000 psi
- 3,900 lbf
Description
Hydraulic Cylinder, Threaded Body, Threaded Body, Body Material Steel, Double Acting, Stroke Length 1 31/32 in, Effective Push Area 0.77 sq in, Effective Pull Area 0.77 sq in, Oil Capacity Push 0.91 cu in, Oil Capacity Pull 1.52 cu in, Pressure Range 5,000 psi max, Extended Height 6.12 in, Retracted Height 4.15 in, Body Thread 1 7/8 In.-16 UN, Plunger Thread Size 0.313 In.-24 UNF, Outside Dia. 1.73 in, Min. Hole Depth 0.47 in, Seal Material Polyurethane/Buna N
