Product Information
MFR #
ATM4
Zoro #
G0164319
UPC #
662005376056
Country of Origin
United Kingdom
Dimensions
Hole Size
61/64 in
Overall Width
2 1/2 in
Overall Length
18 29/32 in
Overall Height
11 1/2 in
Flange Thickness
1-3/16 in to 5-15/64 in
Minimum Flange Thickness
1 3/16 in
Tool Width
2 1/2 in
Tool Height
11 1/2 in
Minimum Bolt Diameter
1 in
Maximum Flange Thickness
5 1/4 in
Tool Length
18 15/16 in
Details
Item

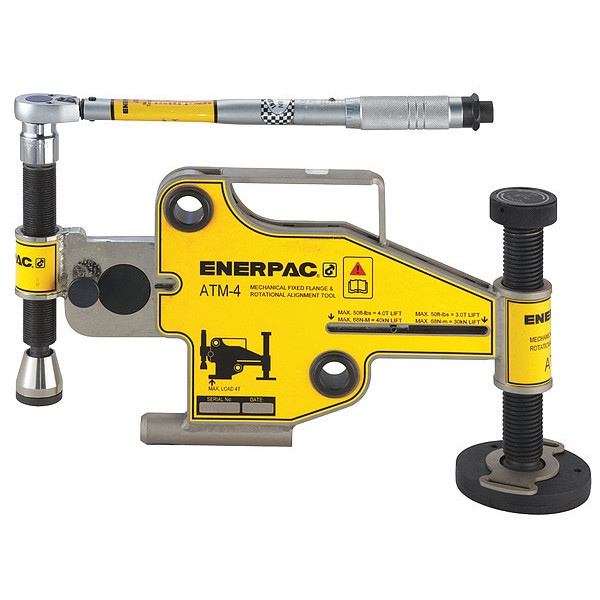

Flange Alignment Tool
Includes
Kit Box
Application
Lift, Lower
Nominal Capacity
4 tons
Spread
6 3/8 in
Series
ATM
Features
For Use with Most ANSI, API, BS and DIN Flanges, Install and Use Vertically or Horizontally, Rectify Twist and Rotational Misalignment, No Slings, Hooks or Lifting Gear Required, Correct Flange Misalignment and Place Bolts
Max. Lifting Force
4 ton
Tool Weight
19 lb
Product Type
Mechanical Flange Alignment Tool
Tool Series
ATM
Maximum Flange Capacity
4 ton
Description
Flange Alignment Tool, Product Type Mechanical Flange Alignment Tool, Minimum Flange Thickness 1 3/16 in, Maximum Flange Thickness 5 1/4 in, Minimum Bolt Diameter 1 in, Maximum Bolt Diameter Not Applicable, Maximum Flange Capacity 4 ton, Spread 6 3/8 in, Features For Use with Most ANSI, API, BS and DIN Flanges, Install and Use Vertically or Horizontally, Rectify Twist and Rotational Misalignment, No Slings, Hooks or Lifting Gear Required, Correct Flange Misalignment and Place Bolts
