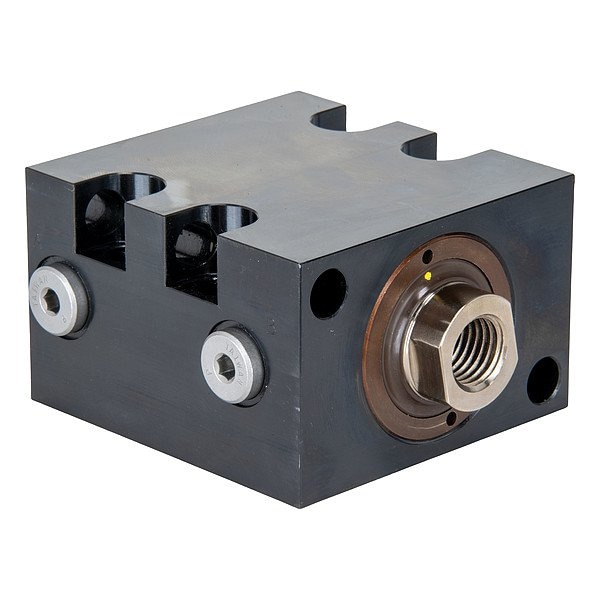

Block hydraulic cylinder
Mfr # CDB180502
Zoro # G315488941
product price:Â
$
1,927.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Oil Capacity
9.34 cu in
Plunger Dia.
0.47 in
Max. Pressure
5,000 psi
Single Acting/Double Acting
Double Acting
Extended Height
7.28 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CDB180502
- Zoro #
- G315488941
- UPC #
- 0662005104406
- Country of Origin
- United States
Dimensions
- Plunger Dia.
- 0.47 in
- Extended Height
- 7.28 in
- Stroke Length
- 1 97/100 in
- Center Hole Dia.
- 30 mm
- Plunger Thread Size
- M30x3.5
- Retracted Height
- 5.31 in
Details
- Oil Capacity
- 9.34 cu in
- Max. Pressure
- 5,000 psi
- Single Acting/Double Acting
- Double Acting
- Effective Area
- 4.74 sq in (Retract); 7.8 sq in (Advance)
- Cylinder Type
- Block Hydraulic Cylinder
- Item
- Block Hydraulic Cylinder
- Body Material
- Steel
- Operating Pressure
- 5,000 psi
- Capacity @ Operating Pressure
- 38,900 lbf
- Nominal Capacity
- 38,900 lbf
- Cylinder Orientation
- Horizontal, Vertical
Description
Block Hydraulic Cylinder, Double Acting, Block Hydraulic Cylinder, Steel, Nominal Capacity 38,900 lbf, Stroke Length 1 97/100 in, Effective Area 4.74 sq in (Retract); 7.8 sq in (Advance), Max. Pressure 5,000 psi, Oil Capacity 9.34 cu in, Retracted Height 5.31 in, Extended Height 7.28 in, Capacity @ Operating Pressure 38,900 lbf, Operating Pressure 5,000 psi, Plunger Dia. 0.47 in, Plunger Thread Size M30x3.5, Center Hole Dia. 30 mm
