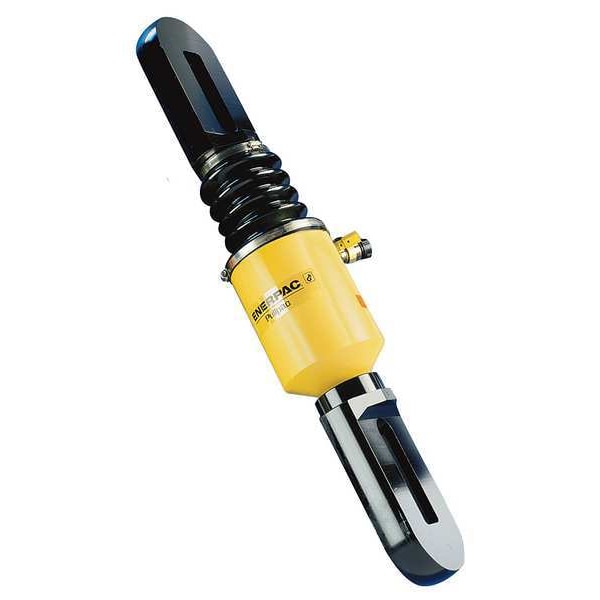

BRP606, 55.8 ton Capacity, 6.00 in Stroke, Pull Hydraulic Cylinder
Mfr # BRP606
Zoro # G6402505
product price: $12,895.99
/ea
Item requires special delivery charges. A $100.00 per item surcharge will be applied.
Key Features
Single Acting/Double Acting
Single Acting
Cylinder Type
Pull
Oil Capacity
70.43 pulg. cub.
Extended Height
34.28 in
Outside Dia.
5.51 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
BRP606
Zoro #
G6402505
UPC #
662005306756
Country of Origin
China
Dimensions
Extended Height
34.28 in
Outside Dia.
5.51 in
Stroke Length
6 in
Plunger Dia.
6.5 in
Center Hole Dia.
4 5/16 in
Retracted Height
28.28 in
Nominal Stroke Length
6 in
Details
Single Acting/Double Acting
Single Acting
Cylinder Type
Pull
Oil Capacity
70.43 pulg. cub.
Max. Pressure
10,000 psi
Effective Area
11.78 sq. in.
Weight Capacity
60 tons
Handle
No
Body Material
Steel
Includes
Slotted Link
Item
Eye-End Pull Hydraulic Ram
Effective Pull Area
11.17 sq in
Max. Pull Capacity
60 ton
Nominal Capacity
60 ton
Oil Capacity Pull
67.02 cu in
Series
BRP
Finish
Paint
Description
Eye-End Pull Hydraulic Ram, Single Acting, Pull, Steel, Nominal Capacity 60 ton, Max. Pull Capacity 60 ton, Stroke Length 6 in, Nominal Stroke Length 6 in, Effective Pull Area 11.17 sq in, Max. Pressure 10,000 psi, Oil Capacity Pull 67.02 cu in, Retracted Height 28.28 in, Extended Height 34.28 in, Outside Dia. 5.51 in, Plunger Dia. 6.5 in, Center Hole Dia. 4 5/16 in, Includes Slotted Link, Series BRP
