Enerpac

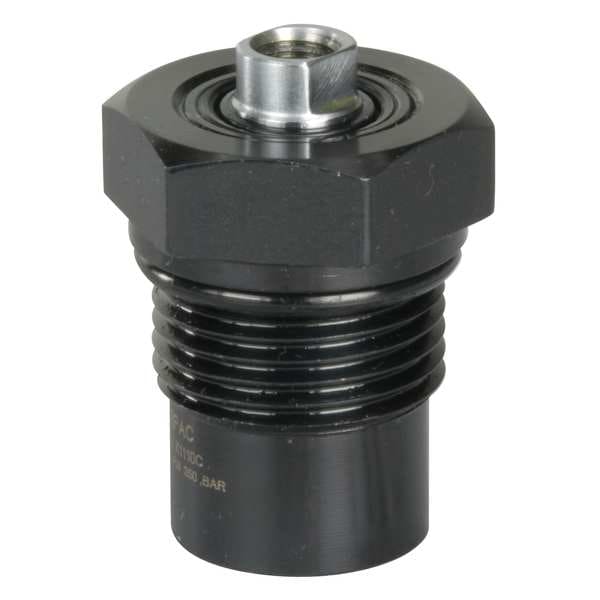

Cylinder, Threaded, 2590 lb, 0.28 In Stroke

product price: $278.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Single Acting/Double Acting Single Acting
  • Push Capacity @ 5000 psi 2,590 lb
  • Stroke Length 1/4 in
  • Retracted Height 1.87 in
See all product information

Product Information

Dimensions

Stroke Length 1/4 in
Retracted Height 1.87 in
Extended Height 2.15 in
Min. Hole Depth 1.33 in
Plunger Thread Size 5/16"-24

Details

Promotion Restriction Not eligible for promotion
Single Acting/Double Acting Single Acting
Push Capacity @ 5000 psi 2,590 lb
Body Thread 1-1/16"-12
Pressure Range 580 to 5000 psi
Type Threaded Body
Material of Construction Steel
Stroke 0.28"
Effective Area Push 0.50 sq. in.
Oil Capacity Push 0.14 cu in
Capacity @ 5000 PSI 2590 lb.
Seal Material Polyurethane/Buna N
Plunger Thread 5/16"-24 UN
Function Single Acting
Item Threaded Body Hydraulic Cylinder
Cylinder Type Threaded Body
Effective Push Area 0.50 sq in
Body Material Steel
Mounting Style Manifold Mount

Description

Threaded Body Hydraulic Cylinder, Threaded Body, Manifold Mount, Body Material Steel, Single Acting, Push Capacity @ 5000 psi 2,590 lb, Stroke Length 1/4 in, Effective Push Area 0.50 sq in, Oil Capacity Push 0.14 cu in, Pressure Range 580 to 5000 psi, Extended Height 2.15 in, Retracted Height 1.87 in, Body Thread 1-1/16 In.-12, Plunger Thread Size 5/16 In.-24, Min. Hole Depth 1.33 in, Seal Material Polyurethane/Buna N
