Enerpac

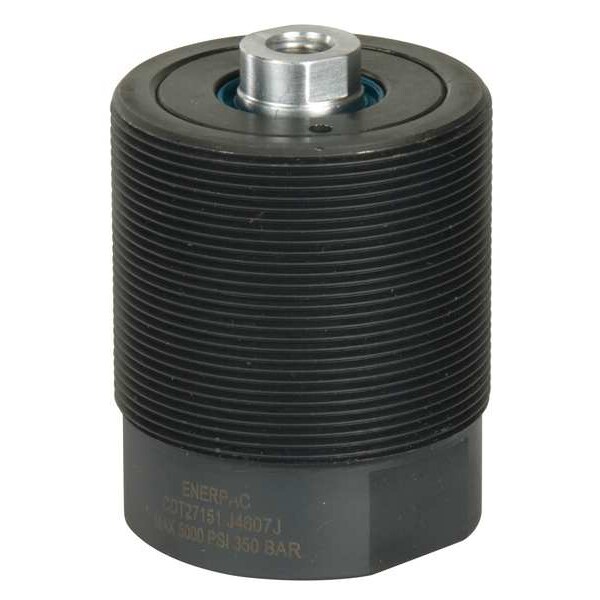

Cylinder, Threaded, 6110 lbs, .98 In Stroke

product price: $416.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Single Acting/Double Acting Double Acting
  • Push Capacity @ 5000 psi 6,110 lb
  • Stroke Length 7/8 in
  • Retracted Height 3.23 in
See all product information

Product Information

Dimensions

Stroke Length 7/8 in
Retracted Height 3.23 in
Outside Dia. 2.5 in
Extended Height 4.21 in
Plunger Thread Size 3/8"-16

Details

Promotion Restriction Not eligible for promotion
Single Acting/Double Acting Double Acting
Push Capacity @ 5000 psi 6,110 lb
Body Thread 2-1/8"-16
Pressure Range 580 to 5000 psi
Seal Material Polyurethane/Buna N
Type Threaded Body
Plunger Thread 3/8"-16 UN
Material of Construction Steel
Oil Capacity Push 1.2 cu in
Function Double Acting
Effective Area Pull 0.82 sq. in.
Item Threaded Body Hydraulic Cylinder
Effective Area Push 1.22 sq. in.
Stroke 0.98"
Oil Capacity Pull 0.81 cu in
Capacity @ 5000 PSI 6110 lb.
Cylinder Type Threaded Body
Mounting Style Threaded Body
Body Material Steel
Effective Pull Area 0.82 sq in
Effective Push Area 1.22 sq in

Description

Threaded Body Hydraulic Cylinder, Threaded Body, Threaded Body, Body Material Steel, Double Acting, Push Capacity @ 5000 psi 6,110 lb, Stroke Length 7/8 in, Effective Push Area 1.22 sq in, Effective Pull Area 0.82 sq in, Oil Capacity Push 1.2 cu in, Oil Capacity Pull 0.81 cu in, Pressure Range 580 to 5000 psi, Extended Height 4.21 in, Retracted Height 3.23 in, Body Thread 2-1/8 In.-16, Plunger Thread Size 3/8 In.-16, Outside Dia. 2.5 in, Seal Material Polyurethane/Buna N
