  5. Digital Industrial Pressure Gauge, 0 to 20,000 psi, 2 3/4 in Dial, 1/4 in NPTF, Bottom Location

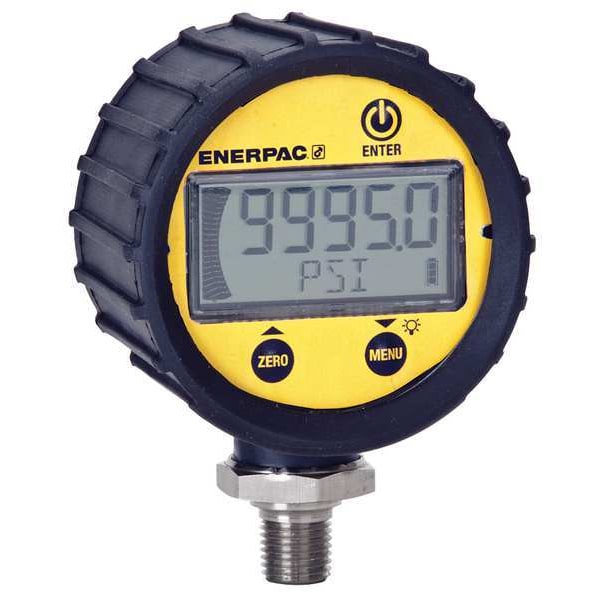

Enerpac Digital Industrial Pressure Gauge, 0 to 20,000 psi, 2 3/4 in Dial, 1/4 in NPTF, Bottom Location DGR2 - main

Digital Industrial Pressure Gauge, 0 to 20,000 psi, 2 3/4 in Dial, 1/4 in NPTF, Bottom Location

  • Mfr # DGR2

  • Zoro # G5230967

product price:  $2,528.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-0.25%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPTF
Dial Size (In.)
2 3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DGR2
Zoro #
G5230967
UPC #
662005362417
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 3/4 in
Connection Size
1/4 in
Nominal Dial Size
2 3/4 in
Case Diameter
2.73 in
Case Depth
1.61 in
Manufacturer Warranty Length
Limited Lifetime
Battery Size
3V

Details

Item
Digital Industrial Pressure Gauge
Accuracy
+/-0.25%
Process Connection Location
Bottom
Process Connection Type
NPTF
Application
Industrial, Workholding Tools
Gauge Case Material
Plastic
Series
DGR
Lens Material
Polycarbonate
Primary Pressure Range
0 to 20,000
Primary Scale Units
psi
IP/NEMA Rating
IP65
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Case Color
Black/Yellow
Powered By
Battery
Includes
Batteries, Protective Cover
Display Units
bar, kg/sq cm, Mpa, psi
Digital Pressure and Vacuum Gauge Type
Digital Pressure Gauge
Peak Hold
No
Calibration Certificate
No
Resolution
0.010
Features
IP65
Connection Location
Bottom
Socket Material
Stainless Steel
For Use With
All Hydraulic Systems Up to 20,000 psi
Number of Display Digits
5
Connection Type
MNPT
Type
Digital
Wetted Materials
Stainless Steel
Standards
CE Certified, RoHS Compliant, UL Listed
Power Supply
3V DC Battery
Primary Display Range
0 to 20,000
Bar Graph
20 Segments
Data Update Frequency
1 sec
Non-Sparking
No
Pressure Gauge Type
Industrial Pressure Gauge
Backlit Screen
Yes
Weatherproof
No
Process Connection Gender
Male
Accuracy Grade Gauge Type
Industrial
Ambient Operating Temperature Range
-20 Degrees to 60 Degrees C, 4 Degrees to 140 Degrees F
Case Shape
Round
Power Source
Battery
Includes Calibration Certificate
No
Low Battery Indicator
No
Process Temperature Range
-40 Degrees to 140 Degrees F
Auto-Shutoff
No
Display Resolution
1 psi
Pressure Range Type
Pressure
Battery Run Time
2,000 hr
Languages
English
Includes Rubber Boot
No
Adjustable Set Points
Yes
Includes Batteries
Batteries Included
Includes Mounting Hardware
No
Display Range
0 to 1,380 bar, 0 to 140 Mpa, 0 to 1,400 kg/sq cm, 0 to 20,000 psi
Number of Digits
5
Display Screen Type
LCD
Primary Display Units
psi
Sensor Material
Diaphragm,17-4 Stainless steel
Maximum Pressure
20000
Battery Life
2,000 hr
Display Type
LCD
Operating Temperature Range
-40 Degrees to 140 Degrees F
Vacuum Measurement - Maximum
0 psi
Compatible with Series
All Enerpac Products Rated for Less than 20,000 psi
Process Media Temperature - Maximum
140 Degrees F
Pressure Measurement - Maximum
20,000 psi
Includes Low Battery Indicator
No Low Battery Indicator
Operating Temperature - Minimum
4 Degrees F
Vacuum Measurement - Minimum
1 psi
Pressure Measurement - Minimum
0 psi
Resistance Properties
Shock Resistant
IP Rating
IP65
Hazardous Location Specification
Not Rated
Pressure Measuring Units
bar, kg/sq cm, Mpa, psi
Process Media Temperature - Minimum
-40 Degrees F
Compatible with Manufacturer Part Number
All Enerpac Products Rated for Less than 20,000 psi
Accuracy Grade
ASME B40.7 Grade 2A

Description

Digital Industrial Pressure Gauge, Accuracy +/-0.25 Percent, Gauge Case Material Plastic, Nominal Dial Size 2 3/4 in, Lens Material Polycarbonate, IP/NEMA Rating IP65, Hazardous Location Rating Not Rated, Sensor Material Diaphragm,17-4 Stainless steel, Socket Material Stainless Steel, Process Connection Type NPTF, Display Units bar, kg/sq cm, Mpa, psi, Process Connection Gender Male, Battery Type 3V Lithium Battery, Process Connection Location Bottom, Process Connection Size 1/4 in

Restrictions

Hazardous material
