Shop ENERPAC

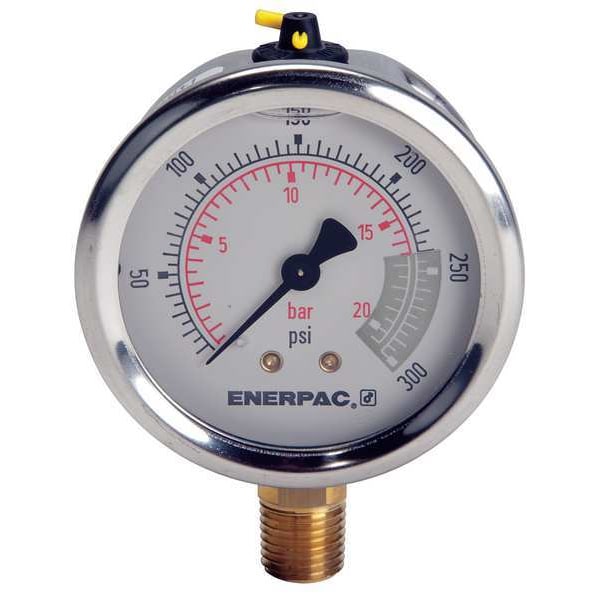

Hydraulic Cylinder Pressure Gauge, 0 to 300 psi psi, 2 1/2 in Dial, 1/4 in NPTF, Bottom Location

  • Mfr # G2512L

  • Zoro # G5155586

product price:
$
152.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Accuracy
+/-1.50%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPTF
Dial Size (In.)
2 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
G2512L
Zoro #
G5155586
UPC #
662005222643
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Length
3.31"
Case Diameter
2.5 in
Case Depth
1.46 in
Nominal Dial Size
2 1/2 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Hydraulic Cylinder Pressure Gauge
Accuracy
+/-1.50%
Process Connection Location
Bottom
Process Connection Type
NPTF
Application
Hydraulics
Gauge Case Material
Stainless Steel
Series
G
Lens Material
Glass
Primary Pressure Range
0 to 300 psi
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
Yes
Calibration Certificate Included
No
Required Gauge Adapter
Enerpac GA-3
Smallest Graduation
5 psi
Gauge Primary Range Smallest Graduation
5
Gauge Filled With
Glycerin
Includes
Pressure Equalizing Membrane, Safety Blow-Out Disk
For Use With
Hydraulics
Case Color
Metallic
Gauge Application
High Cycle
Case Material
Stainless Steel
Socket Material
303 Stainless Steel
Gauge Mounting Method
Lower Mount
Connection Type
NPTF
Secondary Scale Minor Graduations
0.05
Secondary Pressure Range
0 to 20 psi
Requires Adapter
Yes
Primary Scale Minor Graduations
5
Gauge Case Liquid
Glycerin
Includes Vent Plug
No
Secondary Scale Units
bar
Accuracy Scale
Full Scale
Compatible Manufacturer Model Number
FM-25NG, NV-251
Adjustable Pointer
No
Field Fillable
No
Includes Mounting Hardware
No
Removable Bezel
No
Process Connection Gender
Male
Pressure Range Type
Pressure
Freeze Resistant Movement
No
Scale Type
Dual
Compatible Brand and Series
ENERPAC FM-25NG, ENERPAC NV-251
Dial Color
White
Pressure Gauge Type
Hydraulic Cylinder Pressure Gauge
Vibration Resistance
Liquid-Filled
Compatible Gauge Adapter
Enerpac GA-3
Case Construction
Corrosion Resistant
Maximum Pressure
300
Secondary Scale Pressure Measurement - Maximum
20 bar
Process Media Temperature - Maximum
140 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 bar
Process Media Temperature - Minimum
-4 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Compatible Cylinder/Press
ENERPAC FM-25NG, ENERPAC NV-251
Primary Scale Pressure Measurement - Maximum
300 psi
NEMA Enclosure Rating
No Enclosure
Compatible with Manufacturer Part Number
FM-25NG, NV-251
Compatible Cylinder Series
ENERPAC FM-25NG, ENERPAC NV-251
Compatible Gauge Adapter Series
Enerpac GA-3
Case Liquid
Glycerin

Description

Pressure Gauge, Gauge Type Liquid Filled, Dial Size 2-1/2 In., Range 0 to 300 psi, Connection Size 1/4 In. (F)NPT, Connection Location Lower, Smallest Graduation 5 psi, Accuracy +/-1.5 Percent, Case Material Stainless Steel, Case Color Silver, Filled With Glycerin, Lens Material Glass, Required Gauge Adapter Enerpac GA-3, For Use With Hydraulics, Series G, Includes Safety Blow Out Disk
