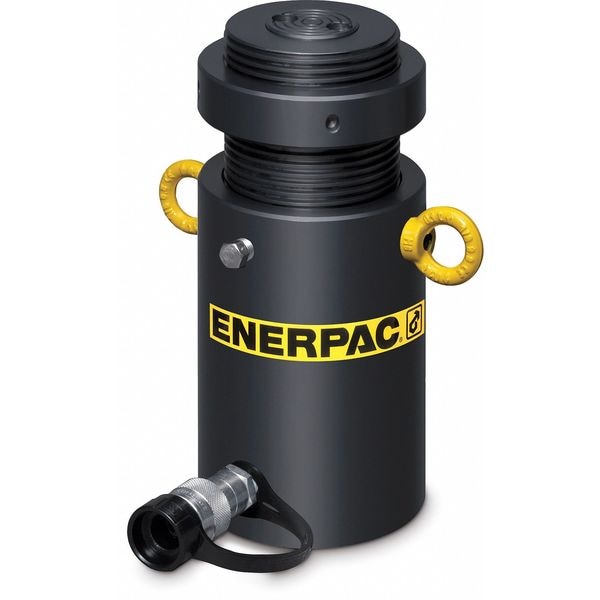

HCL504, 62 ton Capacity, 3.94 in Stroke, Single-Acting, High Tonnage, Lock Nut Hydraulic Cylinder

Enerpac HCL504,  62 ton Capacity,  3.94 in Stroke,  Single-Acting,  High Tonnage,  Lock Nut Hydraulic Cylinder HCL504
Tap to zoom
Hover or click to zoom
$1,796.90
  • Center Hole Dia.: 3 57/64 in
  • Effective Area: 12.73 sq. in.
  • Cylinder Type: Lock Nut
See full product details
This item ships free.

Total: $1,796.90

Enerpac #HCL504 Specifications

  • Center Hole Dia.: 3 57/64 in
  • Effective Area: 12.73 sq. in.
  • Cylinder Type: Lock Nut
  • Bolt Circle Dia.: 4.13"
  • Extended Height: 12.36 in
  • Retracted Height: 8.43 in
  • Body Material: Steel
  • Max. Pressure: 10,150 psi
  • Item: Lock Nut Hydraulic Ram
  • Plunger Thread Size: 1/4 in
  • Outside Dia.: 5.11 in
  • Single Acting/Double Acting: Single Acting
  • Handle: No
  • Oil Capacity: 47.93 cu. in.
  • Plunger Dia.: 3.94 in
  • Stroke Length: 3 7/8 in
  • Collar Thread Size: 1-3/8"-12
  • Thread Size: 1/4"
  • Weight Capacity: 50 tons
  • Includes: 0
  • Nominal Capacity: 50 ton
  • Oil Capacity Push: 47.93 cu in
  • Series: HCL
  • Base Bolt Circle Dia.: 4.13 in
  • Nominal Stroke Length: 4 in
  • Effective Push Area: 12.17 sq in
  • Promotion Restriction: Not eligible for promotion
  • Country of Origin (subject to change): China

Description

Lock Nut Hydraulic Ram, Single Acting, Lock Nut, Steel, Nominal Capacity 50 ton, Stroke Length 3 7/8 in, Nominal Stroke Length 4 in, Effective Push Area 12.17 sq in, Max. Pressure 10,150 psi, Oil Capacity Push 47.93 cu in, Retracted Height 8.43 in, Extended Height 12.36 in, Outside Dia. 5.11 in, Plunger Dia. 3.94 in, Plunger Thread Size 1/4 in, Collar Thread Size 1-3/8 In.-12, Base Bolt Circle Dia. 4.13 in, Center Hole Dia. 3 57/64 in, Series HCL
