Shop ENERPAC

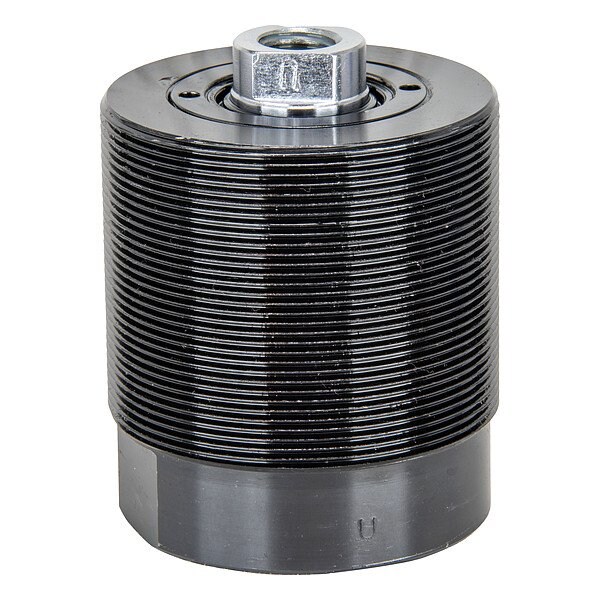

Hydraulic cylinder

  • Mfr # CDT40131

  • Zoro # G915488952

product price:
$
505.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Plunger Thread Size
1/2"-13 UNC
Single Acting/Double Acting
Double Acting
Stroke Length
1/2 in
Extended Height
3.6 in
Cylinder Type
Threaded Body
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CDT40131
Zoro #
G915488952
UPC #
0662005133420
Country of Origin
United States

Dimensions

Plunger Thread Size
1/2"-13 UNC
Stroke Length
1/2 in
Extended Height
3.6 in
Retracted Height
3.09 in
Outside Dia.
2.38 in
Min. Hole Depth
0.59 in

Details

Single Acting/Double Acting
Double Acting
Cylinder Type
Threaded Body
Item
Hydraulic Cylinder
Body Material
Steel
Oil Capacity Push
0.6 cu in
Effective Push Area
1.17 sq in
Pressure Range
5,000 psi max
Body Thread
2.500"-16 UN
Seal Material
Polyurethane/Buna N
Oil Capacity Pull
0.9 cu in
Mounting Style
Threaded Body
Effective Pull Area
1.76 sq in
Push Capacity @ 5000 psi
8,800 lbf

Description

Hydraulic Cylinder, Threaded Body, Threaded Body, Body Material Steel, Double Acting, Stroke Length 1/2 in, Effective Push Area 1.17 sq in, Effective Pull Area 1.76 sq in, Oil Capacity Push 0.6 cu in, Oil Capacity Pull 0.9 cu in, Pressure Range 5,000 psi max, Extended Height 3.6 in, Retracted Height 3.09 in, Body Thread 2.500 In.-16 UN, Plunger Thread Size 1/2 In.-13 UNC, Outside Dia. 2.38 in, Min. Hole Depth 0.59 in, Seal Material Polyurethane/Buna N
