Shop ENERPAC

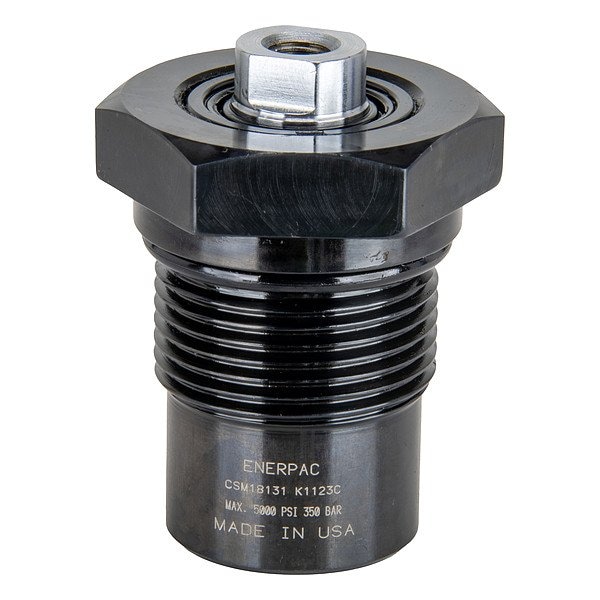

Hydraulic cylinder

  • Mfr # CSM18131
  • Zoro # G615488948

product price:
$
230.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Cylinder Type
Manifold Hydraulic Cylinder
Plunger Thread Size
0.313"-24 UN
Stroke Length
1/2 in
Single Acting/Double Acting
Single Acting
Extended Height
2.87 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CSM18131
Zoro #
G615488948
UPC #
0662005133338
Country of Origin
United States
Item
Hydraulic Cylinder
Cylinder Type
Manifold Hydraulic Cylinder
Single Acting/Double Acting
Single Acting
Body Material
Steel
Seal Material
Polyurethane/Buna N
Mounting Style
Manifold Mount
Effective Pull Area
0.79 sq in
Oil Capacity Pull
0.4 cu in
Pressure Range
5,000 psi max
Body Thread
1.312"-12 UN
Push Capacity @ 5000 psi
3,900 lbf

Dimensions

Plunger Thread Size
0.313"-24 UN
Stroke Length
1/2 in
Extended Height
2.87 in
Retracted Height
2.36 in
Outside Dia.
1.17 in
Min. Hole Depth
0.47 in

Description

Hydraulic Cylinder, Manifold Hydraulic Cylinder, Manifold Mount, Body Material Steel, Single Acting, Stroke Length 1/2 in, Effective Pull Area 0.79 sq in, Oil Capacity Pull 0.4 cu in, Pressure Range 5,000 psi max, Extended Height 2.87 in, Retracted Height 2.36 in, Body Thread 1.312 In.-12 UN, Plunger Thread Size 0.313 In.-24 UN, Outside Dia. 1.17 in, Min. Hole Depth 0.47 in, Seal Material Polyurethane/Buna N
