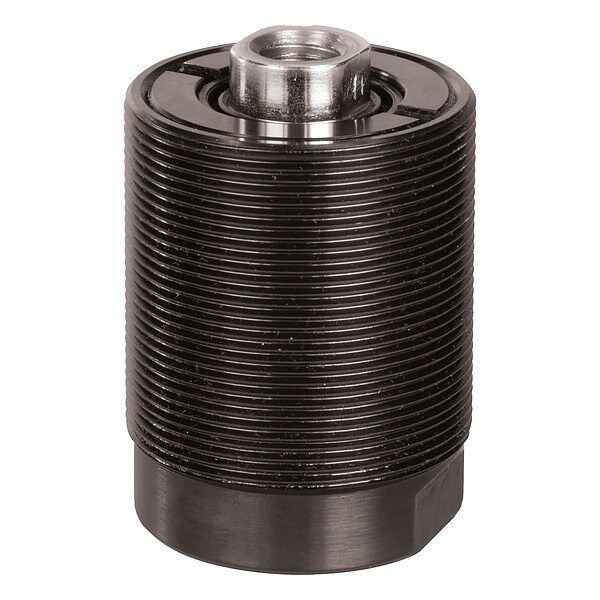

Hydraulic cylinder
Mfr # CST18381
Zoro # G715488992
product price:Â $381.99
/ea
Free Shipping & Returns
Key Features
Extended Height
5.76 in
Stroke Length
1 1/2 in
Outside Dia.
1.22 in
Retracted Height
4.27 in
Single Acting/Double Acting
Single Acting
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
CST18381
Zoro #
G715488992
UPC #
0662005125401
Country of Origin
United States
Dimensions
Extended Height
5.76 in
Stroke Length
1 1/2 in
Outside Dia.
1.22 in
Retracted Height
4.27 in
Plunger Thread Size
0.313"-24 UNF
Min. Hole Depth
0.47 in
Details
Item
Hydraulic Cylinder
Single Acting/Double Acting
Single Acting
Cylinder Type
Threaded Body
Body Material
Steel
Body Thread
1.313"-16 UN
Effective Pull Area
0.79 sq in
Pressure Range
5,000 psi max
Seal Material
Polyurethane/Buna N
Mounting Style
Threaded Body
Oil Capacity Pull
1.18 cu in
Description
Hydraulic Cylinder, Threaded Body, Threaded Body, Body Material Steel, Single Acting, Stroke Length 1 1/2 in, Effective Pull Area 0.79 sq in, Oil Capacity Pull 1.18 cu in, Pressure Range 5,000 psi max, Extended Height 5.76 in, Retracted Height 4.27 in, Body Thread 1.313 In.-16 UN, Plunger Thread Size 0.313 In.-24 UNF, Outside Dia. 1.22 in, Min. Hole Depth 0.47 in, Seal Material Polyurethane/Buna N
