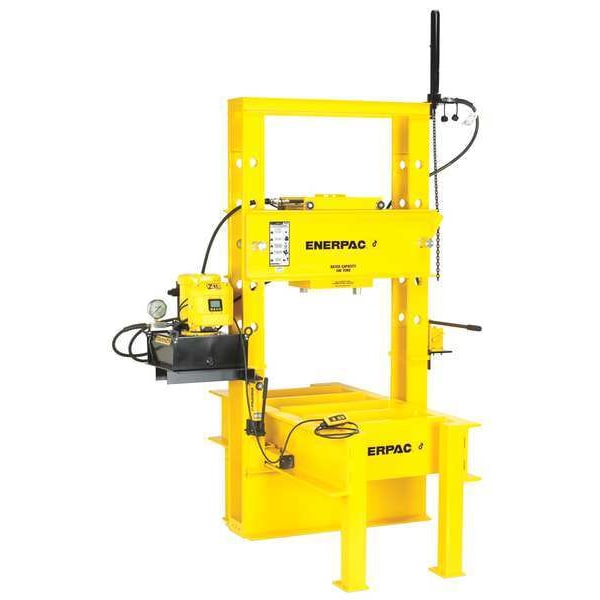

Enerpac IPR10075, 100 Ton Roll Frame Hydraulic Press, RR10013 Double-Acting Cylinder, ZE4420SBN Pump IPR10075 - main

IPR10075, 100 Ton Roll Frame Hydraulic Press, RR10013 Double-Acting Cylinder, ZE4420SBN Pump

  • Mfr # IPR10075

  • Zoro # G3484726

product price: $70,104.99
/ea
Item requires special delivery charges. A $1,440.00 per item surcharge will be applied.

Key Features

Frame Capacity
100 ton
Frame Type
Roll Frame
Cylinder Stroke
13 1/8 in
Pump Type
Electric
Base Length
66 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IPR10075
Zoro #
G3484726
UPC #
662005406777
Country of Origin
United States

Dimensions

Base Length
66 in
Base Width
63 1/4 in
Overall Height
119 in
Working Width
63-15/79"
Working Height
119"
Bed Height
32"
Hose Length
10 ft
Total Width
63-1/4"
Total Height
118.94"
Overall Width
63 1/4 in
Overall Length
66 in
Width Between Table Channels
5 3/4 in
Overall Depth
66 in
Maximum Bed Width
35 in
Press Bed Depth
5 3/4 in
Press Bed Width
35 in
Base Depth
66 in
Hydraulic Hose Length
10 ft

Details

Frame Capacity
100 ton
Frame Type
Roll Frame
Cylinder Stroke
13 1/8 in
Pump Type
Electric
Item
Hydraulic Press
Cylinder
Mfr. No. RR-10013
Cylinder Type
Double Acting
Application
Pressing Bearings
Strokes to Extend Piston 1 In
1.5
Includes
Cylinder, Gauge, Hoses, Pump
Pump
Mfr. No. ZE5420SG-N
Ram Travel
10"
Reservoir Capacity
5 gal
Features
Welded Frame
Max. Ram Advance Speed
1.5 in/min
For Use With
Cylinder Mfr. No. RR10013
Adjustable Bed
Adjustable
Max. Ram Press Speed
10.3 in/min
Pressure
10,000 psi, 100 tons
Stroke
1-1/2 in
Distance Between Uprights
35 in
Max. Ram-to-Table Distance
41.28 in
Operating Pressure
10,000 psi
Series
IPR
Maximum Vertical Daylight
41.28 in
Capacity
100 ton
Operation
Electric
Ram-to-Table Distance - Minimum
6 1/4 in
Pump Model Number
ZE5420SGN
Maximum Ram Press Speed
10.3 in/min
Maximum Ram Advance Speed
1.5 in/min
Cylinder Model Number
RR10013
Ram-to-Table Distance - Maximum
41 1/4 in

Description

Hydraulic Press, Pump Type Electric, Frame Type Roll Frame, Frame Capacity 100 ton, Cylinder Type Double Acting
