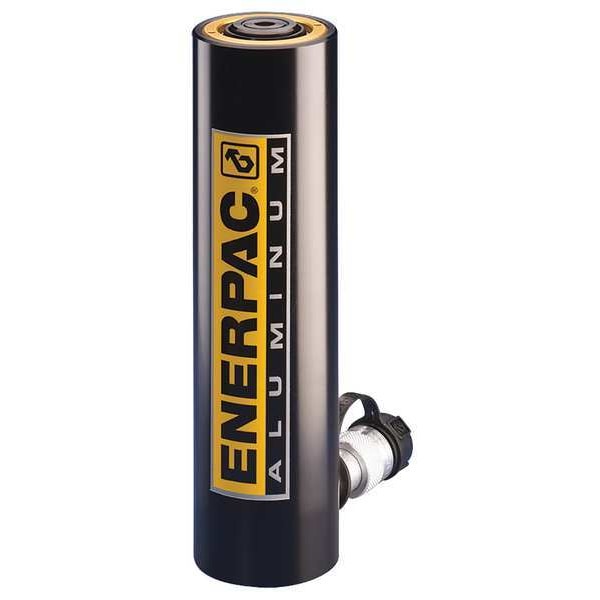

RAC202, 24.2 ton Capacity, 1.97 in Stroke, Aluminum Hydraulic Cylinder

Enerpac RAC202,  24.2 ton Capacity,  1.97 in Stroke,  Aluminum Hydraulic Cylinder RAC202
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$1,225.11
  • Promotion Restriction: Not eligible for promotion
  • Single Acting/Double Acting: Single Acting
  • Plunger Dia.: 2.48 in
See full product details
This item ships free.
Total: $1,225.11

Enerpac #RAC202 Specifications

  • Promotion Restriction: Not eligible for promotion
  • Single Acting/Double Acting: Single Acting
  • Plunger Dia.: 2.48 in
  • Max. Pressure: 10,000 psi
  • Cylinder Type: Lightweight
  • Item: Hydraulic Ram
  • Thread Size: M6
  • Effective Area: 4.83 sq. in.
  • Extended Height: 8.82 in
  • Includes: Coupler, Dust Cap
  • Oil Capacity: 9.51 cu. in.
  • Body Material: Aluminum
  • Retracted Height: 6.85 in
  • Weight Capacity: 20 tons
  • Stroke Length: 1 7/8 in
  • Center Hole Dia.: 2 31/64 in
  • Bolt Circle Dia.: 2.76"
  • Handle: No
  • Outside Dia.: 3.35 in
  • Series: RAC
  • Effective Push Area: 4.83 sq in
  • Oil Capacity Push: 9.52 cu in
  • Base Bolt Circle Dia.: 2.76 in
  • Nominal Capacity: 20 ton
  • Nominal Stroke Length: 2 in
  • Country of Origin (subject to change): India
Feedback Help us improve our product information

Description

  • Composite bearings prevent metal-to-metal contact, increasing cylinder life and resistance to side-loads of up to 10%
  • Hard coat finish on all surfaces resists damage and extends cylinder life
  • For protection against load-induced damage, a saddle is standard on all models and a steel baseplate is standard on models 20-ton and above.
  • Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
  • High-strength return spring for rapid cylinder retraction
  • CR-400 coupler and dust cap included on all models
  • All cylinders meet ASME B-30.1 standards
