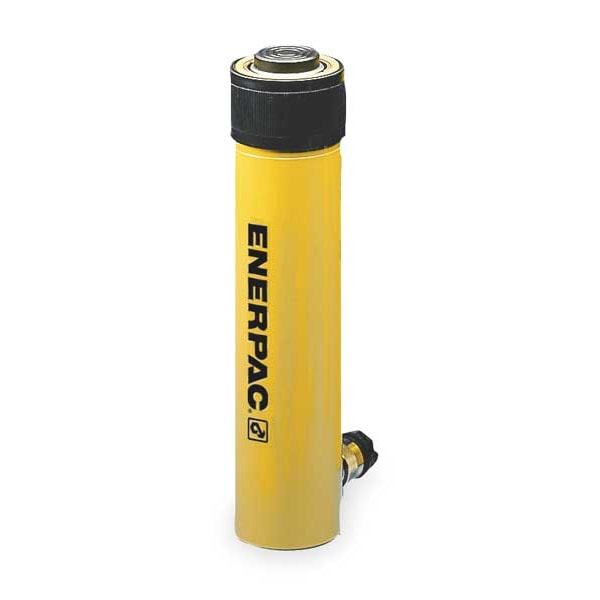

RC2512, 25.8 ton Capacity, 12.25 in Stroke, General Purpose Hydraulic Cylinder
Mfr # RC2512
Zoro # G1487701
product price: $2,190.99
/ea
Free Shipping & Returns
Key Features
Collar Thread Size
3-5/16"-12
Extended Height
29 in
Stroke Length
12 1/4 in
Bolt Circle Dia.
2.31"
Oil Capacity
63.18 cu. in.
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
RC2512
Zoro #
G1487701
UPC #
662005301485
Country of Origin
China
Dimensions
Collar Thread Size
3-5/16"-12
Extended Height
29 in
Stroke Length
12 1/4 in
Bolt Circle Dia.
2.31"
Plunger Thread Size
1/2"-13
Retracted Height
16.75 in
Plunger Dia.
2.25 in
Outside Dia.
3.38 in
Center Hole Dia.
2 1/4 in
Thread Size
1/2"-13
Base Bolt Circle Dia.
2.31 in
Nominal Stroke Length
12 in
Description
Hydraulic Ram, Single Acting, General Purpose, Steel, Nominal Capacity 25 ton, Max. Push Capacity 25 ton, Stroke Length 12 1/4 in, Nominal Stroke Length 12 in, Effective Push Area 5.16 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 63.18 cu in, Retracted Height 16.75 in, Extended Height 29 in, Outside Dia. 3.38 in, Plunger Dia. 2.25 in, Plunger Thread Size 1/2 In.-13, Collar Thread Size 3-5/16 In.-12, Base Bolt Circle Dia. 2.31 in, Center Hole Dia. 2 1/4 in, Series RC
