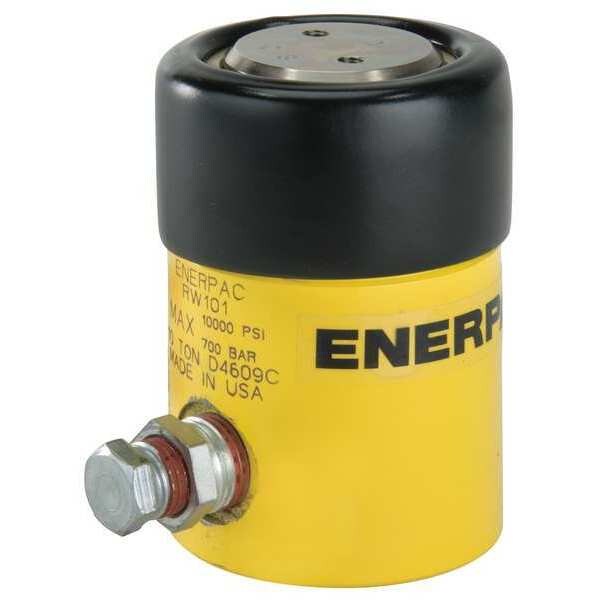

RW101, 11180 lbs Capacity, 0.99 in Stroke, General Purpose Hydraulic Cylinder, Cylindrical Model

Enerpac RW101,  11180 lbs Capacity,  0.99 in Stroke,  General Purpose Hydraulic Cylinder,  Cylindrical Model RW101
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$366.35
  • Promotion Restriction: Not eligible for promotion
  • Thread Size: 5/16"-18
  • Oil Capacity: 2.23 cu. in.
See full product details
This item ships free.
Total: $366.35

Enerpac #RW101 Specifications

  • Promotion Restriction: Not eligible for promotion
  • Thread Size: 5/16"-18
  • Oil Capacity: 2.23 cu. in.
  • Cylinder Type: General Purpose
  • Extended Height: 4.53 in
  • Single Acting/Double Acting: Single Acting
  • Plunger Thread Size: #10-24
  • Retracted Height: 3.53 in
  • Collar Thread Size: 2-1/4"-14
  • Item: Hydraulic Ram
  • Bolt Circle Dia.: 1.56"
  • Effective Area: 2.23 sq. in.
  • Stroke Length: 7/8 in
  • Weight Capacity: 10 tons
  • Plunger Dia.: 1.5 in
  • Body Material: Steel
  • Center Hole Dia.: 1 1/2 in
  • Includes: Saddle
  • Max. Pressure: 10,000 psi
  • Handle: No
  • Outside Dia.: 2.25 in
  • Effective Push Area: 2.23 sq in
  • Oil Capacity Push: 2.23 cu in
  • Nominal Capacity: 10 ton
  • Max. Push Capacity: 10 ton
  • Nominal Stroke Length: 7/8 in
  • Base Bolt Circle Dia.: 1.56 in
  • Series: RW
  • Country of Origin (subject to change): China
Feedback Help us improve our product information

Description

  • Cylindrical models
  • High pressure design when additional force is required
  • Long stroke lengths in a compact design, well suited for welding applications
  • Collar mounting threads and base mounting holes allow flexible mounting options
  • Cylinders are provided with hardened saddles for additional plunger protection
  • Snap-in saddles are easily removed for adapting to different plunger devices
  • Chrome plated plunger with bronze upper and lower bearing provides a long cylinder life
