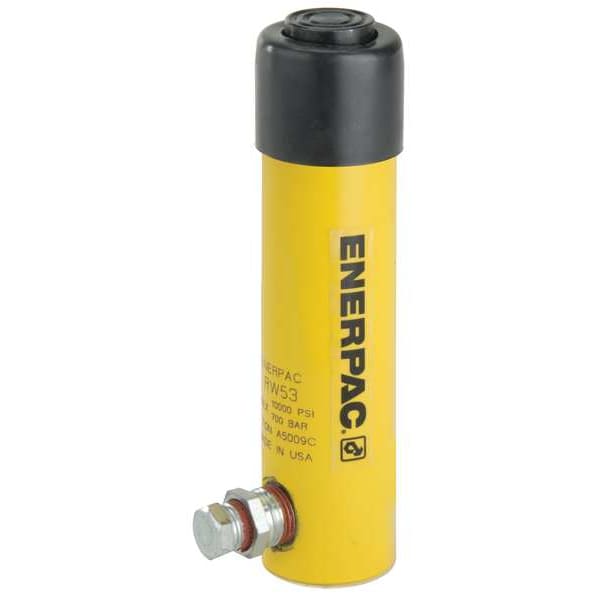

RW53, 4970 lbs Capacity, 3.17 in Stroke, General Purpose Hydraulic Cylinder, Cylindrical Model
Mfr # RW53
Zoro # G0613015
product price: $481.99
/ea
Free Shipping & Returns
Key Features
Cylinder Type
General Purpose
Thread Size
1/4"-20
Weight Capacity
5 tons
Center Hole Dia.
1 in
Body Material
Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
RW53
Zoro #
G0613015
UPC #
662005310296
Country of Origin
China
Dimensions
Thread Size
1/4"-20
Center Hole Dia.
1 in
Extended Height
9.5 in
Stroke Length
3 1/8 in
Outside Dia.
1.5 in
Plunger Thread Size
3/4"-16
Plunger Dia.
1 in
Retracted Height
6.5 in
Collar Thread Size
1-1/2"-16
Bolt Circle Dia.
1"
Nominal Stroke Length
3 in
Base Bolt Circle Dia.
1 in
Description
Hydraulic Ram, Single Acting, General Purpose, Steel, Nominal Capacity 5 ton, Max. Push Capacity 5 ton, Stroke Length 3 1/8 in, Nominal Stroke Length 3 in, Effective Push Area 0.99 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 2.97 cu in, Retracted Height 6.5 in, Extended Height 9.5 in, Outside Dia. 1.5 in, Plunger Dia. 1 in, Plunger Thread Size 3/4 In.-16, Collar Thread Size 1-1/2 In.-16, Base Bolt Circle Dia. 1 in, Center Hole Dia. 1 in, Series RW, Includes Saddle
