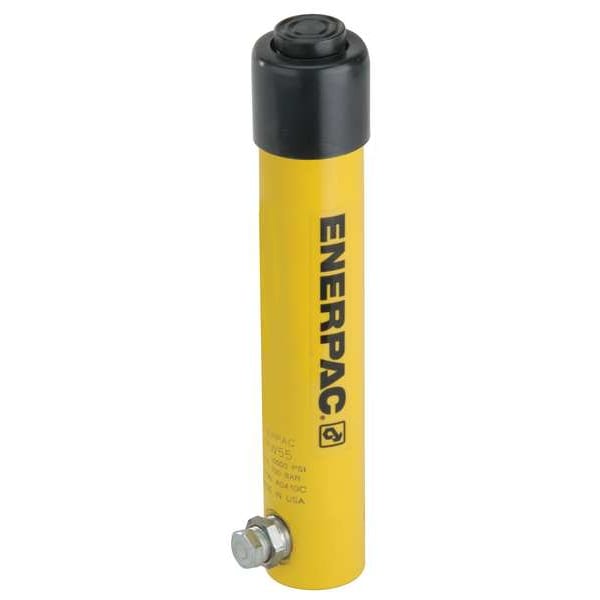

RW55, 4970 lbs Capacity, 5.17 in Stroke, General Purpose Hydraulic Cylinder, Cylindrical Model

Enerpac RW55,  4970 lbs Capacity,  5.17 in Stroke,  General Purpose Hydraulic Cylinder,  Cylindrical Model RW55
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$345.95
  • Promotion Restriction: Not eligible for promotion
  • Oil Capacity: 4.95 cu. in.
  • Plunger Thread Size: 3/4"-16
See full product details
This item ships free.
Total: $345.95

Enerpac #RW55 Specifications

  • Promotion Restriction: Not eligible for promotion
  • Oil Capacity: 4.95 cu. in.
  • Plunger Thread Size: 3/4"-16
  • Cylinder Type: General Purpose
  • Item: Hydraulic Ram
  • Extended Height: 13.5 in
  • Max. Pressure: 10,000 psi
  • Plunger Dia.: 1 in
  • Outside Dia.: 1.5 in
  • Stroke Length: 5 1/8 in
  • Single Acting/Double Acting: Single Acting
  • Body Material: Steel
  • Retracted Height: 8.5 in
  • Handle: No
  • Bolt Circle Dia.: 1"
  • Center Hole Dia.: 1 in
  • Weight Capacity: 5 tons
  • Thread Size: 1/4"-20
  • Collar Thread Size: 1-1/2"-16
  • Effective Area: 0.99 sq. in.
  • Oil Capacity Push: 4.95 cu in
  • Max. Push Capacity: 5 ton
  • Nominal Capacity: 5 ton
  • Effective Push Area: 0.99 sq in
  • Nominal Stroke Length: 5 in
  • Base Bolt Circle Dia.: 1 in
  • Series: RW
  • Country of Origin (subject to change): China
Feedback Help us improve our product information

Description

  • Cylindrical models
  • High pressure design when additional force is required
  • Long stroke lengths in a compact design, well suited for welding applications
  • Collar mounting threads and base mounting holes allow flexible mounting options
  • Cylinders are provided with hardened saddles for additional plunger protection
  • Snap-in saddles are easily removed for adapting to different plunger devices
  • Chrome plated plunger with bronze upper and lower bearing provides a long cylinder life
