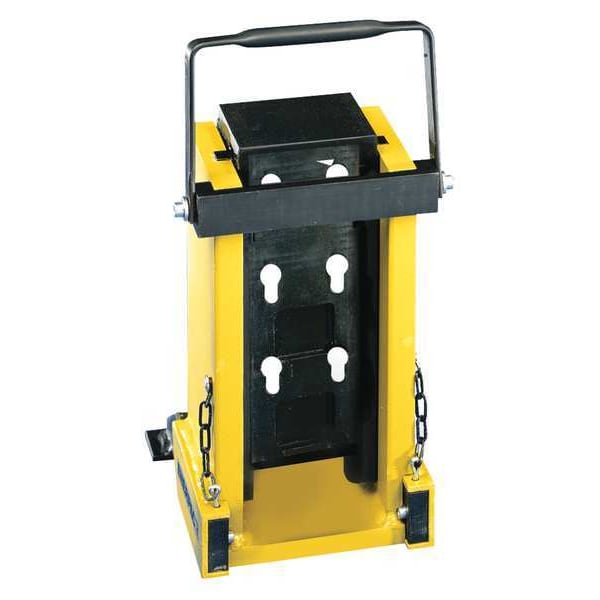

SOH10LC, 8 T MACH. LIFT W/O CYL. PURCH COMP.

  • Mfr # SOH10LC
  • Zoro # G7250844
product price:
$
2,535.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Cylinder
Cylinder Not Included
Nominal Capacity
9 ton
Min. Toe Clearance
0.79 in
Max. Toe Clearance
6.69 in
Stroke Length
5 3/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SOH10LC
Zoro #
G7250844
UPC #
662005355631
Country of Origin
Netherlands
Cylinder
Cylinder Not Included
Nominal Capacity
9 ton
Min. Toe Clearance
0.79 in
Max. Toe Clearance
6.69 in
Oil Capacity
13.7 cu in
Stroke (In.)
5.39
Max. Pressure (PSI)
10,000
Central Toe Clearance (In.)
3.74
Max. Toe Clearance (In.)
6.69
Capacity (Tons)
8.5
Item
Hydraulic Ram Machine Lift
Weight (Lbs.)
59.2
Min. Toe Clearance (In.)
0.79
Oil Capacity (Cu.-In.)
13.70
Type
Hydraulic
Includes Cylinder
No
Series
SOH
Central Toe Clearance
3.74"
Weight
59.2 lb
Single Acting/Double Acting
Single Acting
Max. Pressure
10,000 psi
Center Hole Concentricity
3.74 in

Dimensions

Stroke Length
5 3/8 in
Overall Length (In.)
7.48
Extended Height (In.)
17
Overall Depth (In.)
8.46
Retracted Height (In.)
11.61
Overall Length
7.48 in
Extended Height
17 in
Retracted Height
11.61 in
Overall Depth
8.46 in
Wire Rope Length
7.48 in
Length
7.48 in

Description

Hydraulic Ram Machine Lift, Single Acting, Nominal Capacity 9 ton, Oil Capacity 13.7 cu in, Min. Toe Clearance 0.79 in, Center Hole Concentricity 3.74 in, Max. Toe Clearance 6.69 in, Stroke Length 5 3/8 in, Retracted Height 11.61 in, Extended Height 17 in, Overall Length 7.48 in, Overall Depth 8.46 in, Max. Pressure 10,000 psi, Weight 59.2 lb, Cylinder Cylinder Not Included, Series SOH
