Shop ENERPAC

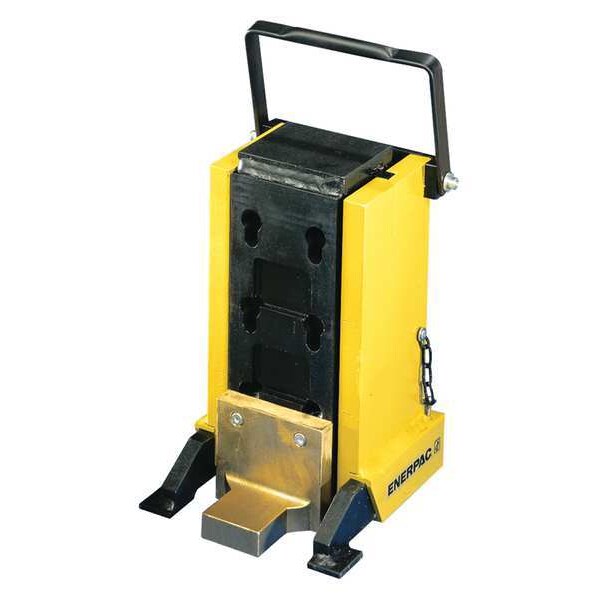

SOH23LC, 20 T MACH. LIFT W/O CYL. PURCH

  • Mfr # SOH23LC

  • Zoro # G6855703

product price:  $3,742.99
/ea
Additional $180.00 delivery surcharge applies per item.
See details

Key Features

Cylinder
Cylinder Not Included
Nominal Capacity
20 ton
Min. Toe Clearance
1.18 in
Max. Toe Clearance
7.48 in
Stroke Length
6 1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SOH23LC
Zoro #
G6855703
UPC #
662005130245
Country of Origin
Netherlands

Dimensions

Stroke Length
6 1/4 in
Retracted Height (In.)
12.4
Overall Length (In.)
10.24
Overall Depth (In.)
11.4
Extended Height (In.)
18.58
Overall Depth
11.4 in
Extended Height
18.58 in
Retracted Height
12.4 in
Overall Length
10.24 in
Wire Rope Length
10.24 in

Details

Cylinder
Cylinder Not Included
Nominal Capacity
20 ton
Min. Toe Clearance
1.18 in
Max. Toe Clearance
7.48 in
Oil Capacity
32 cu in
Weight (Lbs.)
99.2
Max. Pressure (PSI)
10,000
Central Toe Clearance (In.)
4.33
Capacity (Tons)
20
Type
Hydraulic
Min. Toe Clearance (In.)
1.18
Max. Toe Clearance (In.)
7.48
Stroke (In.)
6.18
Oil Capacity (Cu.-In.)
32.00
Item
Hydraulic Ram Machine Lift
Weight
99.2 lb
Central Toe Clearance
4.33"
Single Acting/Double Acting
Single Acting
Series
SOH
Includes Cylinder
No
Max. Pressure
10,000 psi
Center Hole Concentricity
4.33 in

Description

Hydraulic Ram Machine Lift, Single Acting, Nominal Capacity 20 ton, Oil Capacity 32 cu in, Min. Toe Clearance 1.18 in, Center Hole Concentricity 4.33 in, Max. Toe Clearance 7.48 in, Stroke Length 6 1/4 in, Retracted Height 12.4 in, Extended Height 18.58 in, Overall Length 10.24 in, Overall Depth 11.4 in, Max. Pressure 10,000 psi, Weight 99.2 lb, Cylinder Cylinder Not Included, Series SOH
