  11. Connector, Industrial, 5-15R, 15A, 125VAC
Shop All Straight Blade Plugs
Ericson

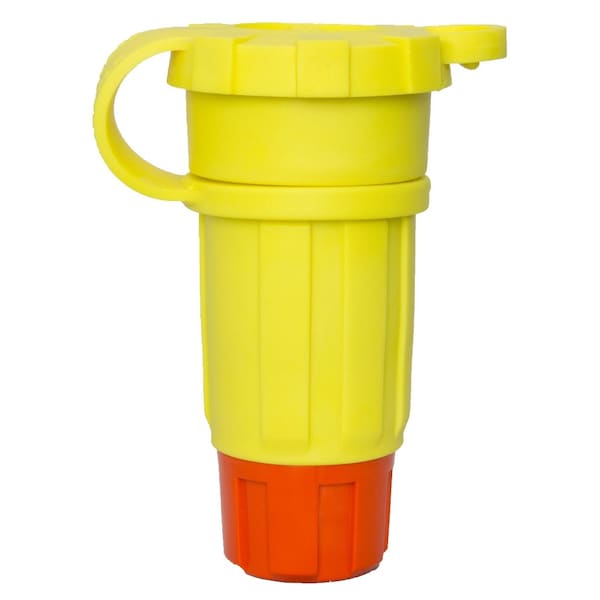

Connector, Industrial, 5-15R, 15A, 125VAC

product price: $42.79
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Amps - Plugs and Receptacles 15
  • Voltage - Plugs and Receptacles 125V AC
  • Voltage 125VAC
  • NEMA Plug Configuration - Plugs and Receptacles 5-15R
  • NEMA Receptacle Configuration 5-15R
See all product information

Product Information

Dimensions

Cord Size 0.300 in to 0.625 in
For Maximum Cable Diameter 0.63 in
For Minimum Cable Diameter 0.3 in

Details

Item - Plugs and Receptacles Watertight Straight Blade Connector
Item Watertight Straight Blade Connector
Amps - Plugs and Receptacles 15
Voltage - Plugs and Receptacles 125V AC
Voltage 125VAC
NEMA Plug Configuration - Plugs and Receptacles 5-15R
NEMA Receptacle Configuration 5-15R
Number of Poles 2
Number of Wires 3
Wiring Style Standard
Color - Plugs and Receptacles Yellow
Grade - Plugs and Receptacles Industrial
Antimicrobial Yes
Color Yellow
HP 1/2 hp
Special Features Corrosion resistant
Phase Single
Corrosion Resistant Yes
Standards ANSI, CSA Certified C22.2 No. 42 File 31943, NSF, NSF/ANSI/3-A 14159-1, UL 498 File E17740, UL Listed
NEMA Configuration 5-15
Amps 15
Material Thermoplastic Elastomer
IP Rating IP65, IP66, IP67
Power Indicator No
Grade Industrial
For Environment Washdown
Voltage Rating 125V AC
Housing Material Thermoplastic Elastomer
Horsepower Rating 1/2 hp
Power Indicating Light No
Market Industrial
Current Rating 15 A
Housing Color Yellow
Resistance Properties Features Antimicrobial x ERICSON, Corrosion Resistant x ERICSON
Resistance Properties Antimicrobial, Corrosion Resistant
Device Type Connector
UL UL Listed to ANSI/UL 498, File E17740
Ideal Application Any environment that requires a watertight seal of a plug and connector to prevent water ingress. Applications range from a construction site to an entertainment venue and a drop down connector in a food processing plant during a Washdown procedure.
Blade Style Straight
Poles / Wires 2P/3W
Sub Brand / Trademark Perma-Kleen
Case Qty 50
Environmental Rating Watertight (IP69K)
CSA CSA Certified to CSA C22.2 No.42, File 31943
NSF NSF/ANSI/3-A 14159-1

Description

Watertight Straight Blade Connector, Current Rating 15 A, Housing Color Yellow, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Antimicrobial, Corrosion Resistant, Voltage Rating 125V AC, For Maximum Cable Diameter 0.63 in, For Minimum Cable Diameter 0.3 in, Grade Industrial, Horsepower Rating 1/2 hp, Housing Material Thermoplastic Elastomer, IP Rating IP65, IP66, IP67, Market Industrial, Power Indicating Light No
