Ericson

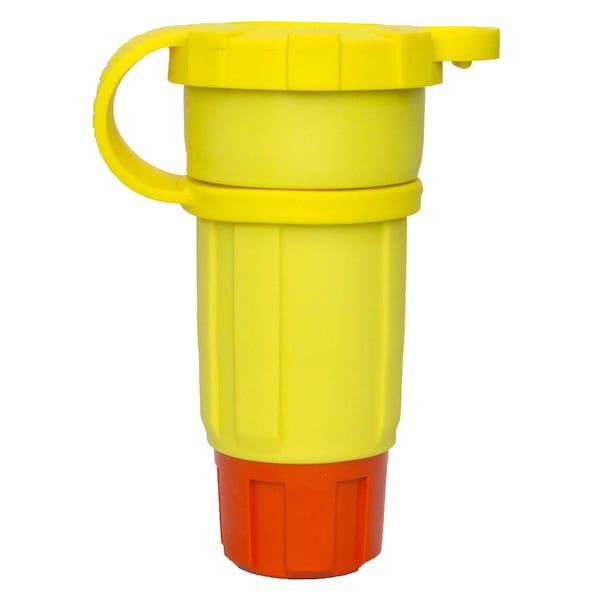

Connector, Industrial, 5-20R, 20A, 125VAC

original price: $52.24
13% off
new price: $45.45
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Amps - Plugs and Receptacles 20
  • Voltage - Plugs and Receptacles 125V AC
  • Voltage 125VAC
  • NEMA Plug Configuration - Plugs and Receptacles 5-20R
  • NEMA Receptacle Configuration 5-20R
See all product information

Product Information

Dimensions

Cord Size 0.300 in to 0.625 in
For Maximum Cable Diameter 0.63 in
For Minimum Cable Diameter 0.3 in

Details

Item - Plugs and Receptacles Watertight Straight Blade Connector
Item Watertight Straight Blade Connector
Amps - Plugs and Receptacles 20
Voltage - Plugs and Receptacles 125V AC
Voltage 125VAC
NEMA Plug Configuration - Plugs and Receptacles 5-20R
NEMA Receptacle Configuration 5-20R
Number of Poles 2
Number of Wires 3
Wiring Style Standard
Color - Plugs and Receptacles Yellow
Grade - Plugs and Receptacles Industrial
Antimicrobial Yes
Color Yellow
Power Indicator No
Standards ANSI, CSA Certified C22.2 No. 42 File 31943, NSF, NSF/ANSI/3-A 14159-1, UL 498 File E17740, UL Listed
Special Features Corrosion resistant
IP Rating IP65, IP66, IP67
Material Thermoplastic Elastomer
Phase Single
NEMA Configuration 5-20
Corrosion Resistant Yes
Amps 20
Grade Industrial
HP 1 hp
Market Industrial
Current Rating 20 A
For Environment Washdown
Resistance Properties Antimicrobial, Corrosion Resistant
Resistance Properties Features Antimicrobial x ERICSON, Corrosion Resistant x ERICSON
Housing Material Thermoplastic Elastomer
Housing Color Yellow
Voltage Rating 125V AC
Power Indicating Light No
Horsepower Rating 1 hp
Blade Style Straight
Environmental Rating Watertight (IP69K)
UL UL Listed to ANSI/UL 498, File E17740
Device Type Connector
Case Qty 50
Poles / Wires 2P/3W
NSF NSF/ANSI/3-A 14159-1
Sub Brand / Trademark Perma-Kleen
Ideal Application Any environment that requires a watertight seal of a plug and connector to prevent water ingress. Applications range from a construction site to an entertainment venue and a drop down connector in a food processing plant during a Washdown procedure.
CSA CSA Certified to CSA C22.2 No.42, File 31943

Description

Watertight Straight Blade Connector, Current Rating 20 A, Housing Color Yellow, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Antimicrobial, Corrosion Resistant, Voltage Rating 125V AC, For Maximum Cable Diameter 0.63 in, For Minimum Cable Diameter 0.3 in, Grade Industrial, Horsepower Rating 1 hp, Housing Material Thermoplastic Elastomer, IP Rating IP65, IP66, IP67, Market Industrial, Power Indicating Light No
