Shop ERICSON

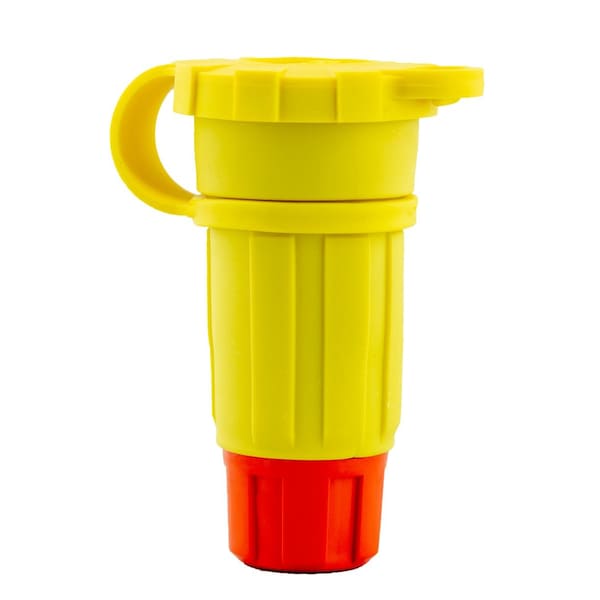

Locking Connector, L7-15R, 15 A, 277V AC, Single Phase, 2 Pole, Yellow

  • Mfr # 1624-CW6P-AM

  • Zoro # G0116965

product price:  $40.99
/ea

Key Features

NEMA Receptacle Configuration
L7-15R
Current Rating
15 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1624-CW6P-AM
Zoro #
G0116965
UPC #
782862899793
Country of Origin
United States

Dimensions

Cord Size
0.470 in to 0.720 in
For Minimum Cable Diameter
0.47 in
For Maximum Cable Diameter
0.72 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L7-15R
Current Rating
15 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wiring Style
Standard
Shrouded
Yes
Housing Color
Yellow
Standards
CSA Certified C22.2 No. 42 File 31943, NSF/ANSI/3-A 14159-1, UL Listed to ANSI/UL 498 File E17740
Resistance Properties
Antimicrobial
Power Indicator
No
IP Rating
IP69K
NEMA Rating
12, 4, 4X, 6, 6P
Grade
Industrial
Material
Thermoplastic Elastomer
Antimicrobial
Yes
Insulation Material
Thermoplastic
Midget Locking
No
Horsepower Rating
Not Rated
Power Indicating Light
No
For Environment
Washdown
NEMA Enclosure Rating
12, 4, 4X, 6, 6P
Housing Material
Thermoplastic Elastomer
Market
Industrial
Sub Brand / Trademark
Perma-Kleen
Device Type
Connector
Blade Style
Straight
Case Qty
50
Current
15 A
Maximum Voltage
277 V
RoHS Compliant
Yes
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Power and Ground Indicating Light
No

Description

Locking Connector, Connection Orientation Straight, Current Rating 15 A, Housing Color Yellow, Housing Material Thermoplastic Elastomer, IP Rating IP69K, NEMA Receptacle Configuration L7-15R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Antimicrobial, Shrouded Yes, Voltage Rating 277V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 0.72 in, For Minimum Cable Diameter 0.47 in, Grade Industrial, Horsepower Rating Not Rated
