MIG Welder, 210 PRO, Single-Phase, 120V, 230V AC

  • Mfr # 0700301084

  • Zoro # G115379999

product price:
$
1,339.99
/ea
Free Shipping & Returns

Key Features

Series
210 PRO
Input Voltage
120/230V AC
Phase
Single
Welding Processes
MIG Welding
Application
Agricultural Equipment, Automotive, Automotive Bodies, Civil Construction, Hobbyist, Light Fabrication, Maintenance and Repair
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
0700301084
Zoro #
G115379999
UPC #
7330725080012
Country of Origin
China

Dimensions

Overall Height
15.2 in
Overall Width
8.7 in
Overall Depth
23.2 in
Power Cord Length
10 ft
For Maximum Material Thickness
3/8 in
Maximum Wire Diameter
0.035 in (Mild Steel), 0.035 in (Stainless Steel), 0.045 in (Aluminum), 0.045 in (Flux Cored)
Minimum Wire Diameter
0.023 in (Mild Steel), 0.03 in (Aluminum), 0.03 in (Flux Cored), 0.03 in (Stainless Steel)
For Minimum Material Thickness
3/8 in
For Stainless Steel Thickness - Minimum
4/5 mm
Wire Diameter Solid - Minimum
0.023 in
For Steel Thickness - Maximum
8 mm
For Aluminum Thickness - Maximum
6 mm
Wire Diameter Flux-Cored - Minimum
0.03 in
Wire Diameter Solid - Maximum
0.045 in
For Aluminum Thickness - Minimum
4/5 mm
For Stainless Steel Thickness - Maximum
8 mm
Wire Diameter Aluminum - Minimum
0.03 in
Wire Diameter Aluminum - Maximum
0.045 in
For Steel Thickness - Minimum
4/5 mm
Wire Diameter Flux-Cored - Maximum
0.045 in

Details

Item
MIG Welder
Series
210 PRO
Input Voltage
120/230V AC
Phase
Single
Welding Processes
MIG Welding
Application
Agricultural Equipment, Automotive, Automotive Bodies, Civil Construction, Hobbyist, Light Fabrication, Maintenance and Repair
Features
Energy Save Mode - After 2 min of Inactivity the Unit will Enter this State to Reduce Power Consumption, Full Feature Mig/Mag Machine for Synergic Mig, Manual Mig, Mig Brazing, Flux-Cored, Intuitive 5 in Tet Screen Offers Clear Views with Direct Interaction, Jobs - 10 Memory Save/Recall Function, Multi-Language Display - Configure the Display to 1 of 29 Languages, Power Factor Correction (PFC) - Ensures a Stable Arc, Resistant to Power Fluctuations Even While Working on Long Extension Cables up to 100 M (328 ft), Unique Rugged Industrial Design - Supporting Multiple Lift Points and Cable Management
Includes

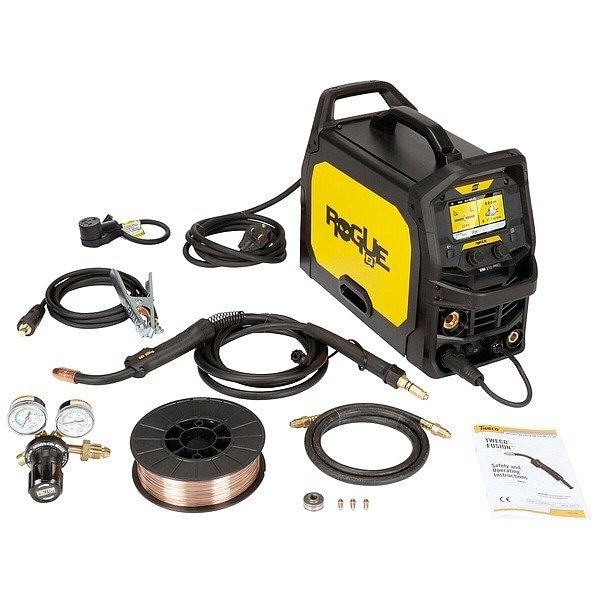

0.023/0.030/0.035 in Feed Rolls, 10 ft Gas Hose, 10 ft Mains Cable with NEMA 6-50P Plug, 10 ft Tweco Fusion 180A MIG Gun, 10 ft Work Clamp Leadset with Heavy Duty 50 mm OKC Connection, ESAB OK AristoRod 12.50 2.2 lb in 0.030 in Wire, Power Adapter - NEMA 6-50R to NEMA 5-15P, Rogue EM 210 PRO MIG/MAG Power Source, Tweco Velocity Contact Tips, Victor Ar/CO2 Regulator/Flow Gauge
Standards
cETLus
MIG Welding Output @ Duty Cycle
100 A @ 19 V (120 V) @ 25%, 105 A 19.2 V (230 V) @ 100%, 136 A @ 20.8 V (230 V) @ 60%, 210 A @ 24.5 V (230 V) @ 25%, 63 A @ 17.2 V (120 V) @ 100%, 82 A @ 18.1 V (120 V) @ 60%
For Material Type
Steel, Stainless Steel
Model
MIG Welding System
Plug Type
6-50P
MIG Welding Minimum Output Current
63 A
Polarity
DC
Amperage Range
10 to 210 A
For Wire Type
Flux-Cored
Maximum Wire Feed Speed
650 in/min
Weight
37.3 lb
MIG Welding Maximum Output Current
210 A
Power Cord Included
Yes
Minimum Wire Feed Speed
75 in/min
Input Frequency
50/60 Hz
Welding Mode
CC/CV
Color
Yellow
Amperage MIG - Maximum
210 A
Welding Power Source Type
CV
Process
MIG Welding (GMAW)
Amperage MIG - Minimum
63 A
Rated Output @ Duty Cycle (MIG)
100 A @ 19 V (120 V) @ 25%, 105 A 19.2 V (230 V) @ 100%, 136 A @ 20.8 V (230 V) @ 60%, 210 A @ 24.5 V (230 V) @ 25%, 63 A @ 17.2 V (120 V) @ 100%, 82 A @ 18.1 V (120 V) @ 60%

Description

MIG Welder, Series 210 PRO, Input Voltage 120V, 230V AC, Phase Single-Phase, Welding Mode CC/CV, Polarity AC/DC, Input Frequency 50/60 Hz, Welding Processes MIG Welding, For Wire Type Flux-Cored, Maximum Wire Diameter 0.035 in (Mild Steel), 0.035 in (Stainless Steel), 0.045 in (Aluminum), 0.045 in (Flux Cored), Maximum Wire Feed Speed 650 in/min, Model MIG Welding System
