Shop ESSEX

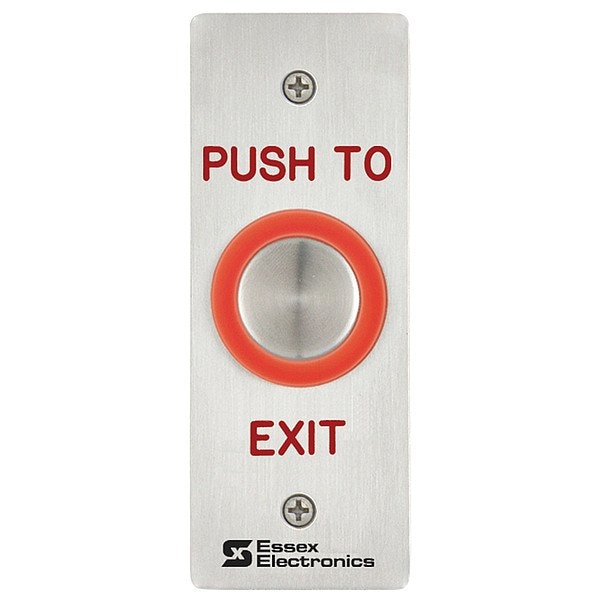

Piezoelectric Switch, SS, 1-1/4"x4-1/2

  • Mfr # PEB-1S
  • Zoro # G304397735
product price:
$
116.99
/ea
Free Shipping & Returns

Key Features

Type
Push to Exit
Switch Action
Push Button
Material
Stainless Steel
For Use With
Any Electrically Controlled Device, Automatic Door, Electric Lock/Strike, Magnetic Lock
Input Voltage
12 to 24V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
PEB-1S
Zoro #
G304397735
UPC #
666272109553
Country of Origin
United States
Item
Exit Push Button
Type
Push to Exit
Switch Action
Push Button
Material
Stainless Steel
For Use With
Any Electrically Controlled Device, Automatic Door, Electric Lock/Strike, Magnetic Lock
Input Voltage
12 to 24V DC
Standards
UL 294
Finish
Stainless Steel
Operating Temp.
-40 Degrees to 160 Degrees F
Rating
2A @ 30 V DC
Keypad
1 Button
Color
Gray
Button Color
Silver
ADA Compliant
No
Supports Touchless Operation
No
Features
Adjustable 1 to 40 sec Output Time, IP66 Rated, Vandal-Resistant
Amps AC
10 mA to 120 m
Exit Device Type
Mortise
Output
1 N/C, 1 N/O
Performance
Heavy-Duty
Power Source
DC Power
Supports Operation Type
Push-Button Operation
Operation Style
Manual
Failure Mode
Fail Safe or Fail Secure
Product Type
Exit Push Button
Operating Temperature - Maximum
160 Degrees F
ANSI/BHMA Finish
Unfinished
Performance Grade
1
Operating Temperature - Minimum
-40 Degrees F
Operation Type
Push Button
Voltage
125V AC, 30V DC
Power Source - TS Only
DC Power
Power Source - old
DC Power

Description

Exit Push Button, Type Push to Exit, Switch Action Push Button, Material Stainless Steel, Finish Stainless Steel, Depth 1 1/4 in, Height 4 1/2 in, Width 1 3/4 in, Button Color Silver, Color Gray, Rating 2A @ 30 V DC, Input Voltage 12 to 24V DC, Output 1 N/C, 1 N/O, Amps AC 10 mA to 120 m, Operating Temp. -40 Degrees to 160 Degrees F, Keypad 1 Button, Standards UL 294, For Use With Any Electrically Controlled Device, Automatic Door, Electric Lock/Strike, Magnetic Lock, Exit Device Type Mortise
