  15. 2NC/2NO Limit Switch IP 67

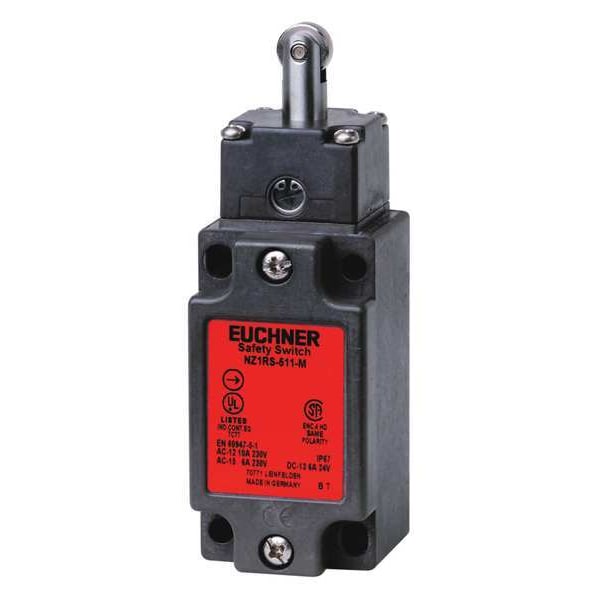

Euchner 2NC/2NO Limit Switch IP 67 NZ1RS-3131-M - main

2NC/2NO Limit Switch IP 67

  • Mfr # NZ1RS-3131-M

  • Zoro # G1890397

product price: $107.99
/ea
Free Shipping & Returns

Key Features

Contact Form- Switches
2NC/2NO
Standards
CCC, CE, cULus
Operating Force
54 oz
Contact Form
2NC/2NO
Depth
1.65 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NZ1RS-3131-M
Zoro #
G1890397
UPC #
-
Country of Origin
Germany

Dimensions

Depth
1.65 in
Height
3.81 in
Actuator Length
0.51 in
Width
1.73 in
Overall Width
1.73 in
Overall Depth
1.65 in
Body Width
1.73 in
Body Depth
1.65 in
Overall Height
3.82 in
Roller Diameter
0.47 in
Body Height
3.82 in
Mounting Hole Diameter
0.21 in

Details

Item
Limit Switch
Contact Form- Switches
2NC/2NO
Standards
CCC, CE, cULus
Operating Force
54 oz
Contact Form
2NC/2NO
Series
Euchner NZ
Movement
Horizontal
IP Rating
67
Body Material
Aluminum
Operating Temp. Range
-13 Degrees to 176 Degrees F
Electrical Connection
Screw Terminals
Contact Form - Limit Switch
2NC/2NO
AC Contact Rating
4 A @ 230 V
Roller Material
Steel
Arm Material
Metal
Actuator Location
Top
DC Contact Rating
4 A @ 24 V
Actuator Style
Roller Plunger
Number of Mounting Holes
4
Operating Force - Minimum
15 N
Operating Temperature - Maximum
176 Degrees F
Action
Momentary
Roller Position
Top
Mounting Style
Surface
Includes Actuator
Actuator Included
Pretravel
0.12 in
Directional Movement
Linear
Body Configuration
Non Plug-In
Overtravel
0.16 in
Mounting Hole Vertical Center to Center Distance
60 mm
Mounting Hole Horizontal Center to Center Distance
30 mm
Arm Adjustability
Fixed
Operating Force - Maximum
30 N
Operating Temperature - Minimum
-13 Degrees F
Roller Adjustability
Fixed
Total Travel
0.24 in
Plunger Adjustability
Fixed
Boot Sealed Actuator
No Boot Included
Lamp Type
No Lamp Module Included
Hazardous Location Specification
Not Rated

Description

Roller Plunger Limit Switch, Electrical Connection Screw Terminals, IP Rating IP67, IP68
