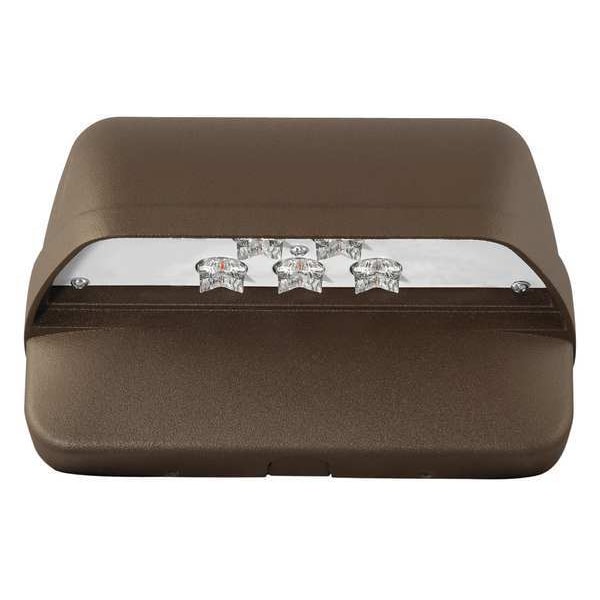

LED Wall Pack, 13W, 120-277V, 1132L

  • Mfr # LNC-5LU-5K-3-1-PCU

  • Zoro # G7504016

product price:
$
235.99
/ea
Free Shipping & Returns

Key Features

Voltage
120 to 277V AC
Width
4 7/8 in
Height
5 1/4 in
Length
8 1/4 in
Series
LNC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LNC-5LU-5K-3-1-PCU
Zoro #
G7504016
UPC #
785988038923
Country of Origin
Mexico
Item
Wall Pack
Voltage
120 to 277V AC
Series
LNC
Light Technology
LED
Watts
13
Lens Material
Acrylic
Fixture Sensor Type
Photocell
Lumens
1,132 lm
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Housing Color
Bronze
Finish
Bronze
Operating Temp. Range
-40 Degrees to 40 Degrees C
Fixture Voltage
120 to 277
Lighting Certification
DesignLights Consortium (DLC)
Green Certification or Other Recognition
DesignLights Consortium (DLC)(R) Listed
CRI
70
Light Distribution
Type III
Sensor Type - Fixtures
Photocell
Color Temperature
5000K
Fixture Housing Material
Die-Cast Aluminum
LED Replacement For
70W HPS/MH
Housing Material
Aluminum
Description/Special Features
Continuous 0-10V Dimming
Max. Fixture Wattage
13.0
Color Temp.
5000K
Fixture Rated Life
60,000 hr
Standards
LM79. LM80, TM21, UL 1598 for wet Locations
Fixture Housing Color
Bronze
Color Rendering Index
70
Lamp Watts - Fixtures
13.0
Type - Wall Pack Fixtures
Dusk-to-Dawn
Warranty
5 yr
Lumens Per Watt
87.0
Fixture Lens Material
Acrylic
Rated Life
60,000 hr
Temp. Range
-40 Degrees to 40 Degrees C
Fixture Wattage
13 W
Light Distribution Shape
Type III
Lumens per Watt
87 lm/W
Special Features
Continuous 0-10V Dimming
Min. Operating Temp.
-40 Degrees F
Max. Operating Temp.
104 Degrees F
Light Output
1,132 lm
High Pressure Sodium Wattage Equivalency
70 W
Operating Temperature - Maximum
104 Degrees F
Lumen Selectable
Not Selectable
Operating Temperature - Minimum
-40 Degrees F
Incandescent Wattage Equivalency
70 W
Color Selectable
Not Selectable
Number of Knockouts
0
Light Distribution Type - IESNA
Type III
Sensor Type
Photocell Included
Metal Halide Wattage Equivalency
70 W
Mount Type
Surface
Low Pressure Sodium Wattage Equivalency
70 W
Number of Hubs
1
Light Distribution Type - NEMA
NEMA 3x3

Description

Wall Pack, Lumens 1,132 lm, Fixture Wattage 13 W, Voltage 120 to 277V AC, Light Distribution Shape Type III, LED Replacement For 70W HPS/MH, Fixture Sensor Type Photocell, Light Technology LED, Color Temperature 5000K, Color Rendering Index 70, Height 5 1/4 in, Width 4 7/8 in, Rated Life 60,000 hr, Fixture Housing Color Bronze, Fixture Housing Material Die-Cast Aluminum, Fixture Lens Material Acrylic, Lumens per Watt 87 lm/W, Max. Operating Temp. 104 Degrees F, Min. Operating Temp. -40 Degrees F
