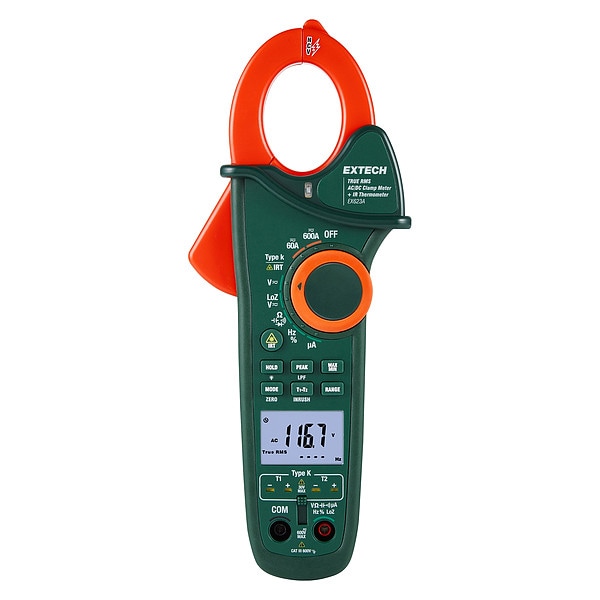

Extech DigitalClampMeter, TRMS, 600A, 600VAC EX623A - main

DigitalClampMeter, TRMS, 600A, 600VAC

  • Mfr # EX623A

  • Zoro # G011248672

product price: $269.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Safety Rating
CAT III 600V
Jaw Opening
1.25 in
Minimum Storage Temperature
-4 Degrees F
Maximum AC Voltage Measurement
600 V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EX623A
Zoro #
G011248672
UPC #
793950376256
Country of Origin
China

Dimensions

Overall Height
9 in
Overall Width
3.1 in
Manufacturers Warranty Length
2 yr
Battery Size
9V
Maximum Conductor Size
500MCM

Details

Item
Clamp Meter
Digital/Analog
Digital
Safety Rating
CAT III 600V
Jaw Opening
1.25 in
Minimum Storage Temperature
-4 Degrees F
Maximum AC Voltage Measurement
600 V
Calibration Certificate Included
No
Minimum Operating Temperature
41 Degrees F
Batteries Included
Yes
AC Current Measurement Resolution
10 mA
Maximum Frequency Measurement
40 MHz
Data Logging
Yes
Minimum AC Voltage Measurement
400 mV
Minimum AC Current Measurement
40 A
Data Hold
Yes
Audible Continuity
Yes
AC Response Calculation
TRMS
Minimum DC Voltage Measurement
400 mV
Battery Access
Yes
Maximum Resistance Measurement
40 megaohm
Parameters Measured
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Frequency, Low Input Impedance, Low Pass Filter (LPF), Resistance, Temperature (IR), Temperature (K)
Maximum Capacitance Measurement
40 mF
Thermometer Type
Infrared
Maximum Storage Temperature
140 Degrees F
Maximum AC Current Measurement
600 A
Minimum Frequency Measurement
40 Hz
Basic AC Current Accuracy
+/-1.5%
Maximum DC Voltage Measurement
600 V
Special Features
Dual Thermocouple Inputs, Infrared Thermometer with Laser Pointer for Locating Hot Spots, NCV Detector
Display Type
Backlit LCD
Battery Voltage
9V
Frequency Counter
40 MHz
Includes
(2) Type K Bead Wire Temperature Probes, Carrying Case, Test Leads
Capacitance Measurement Resolution
0.01 nF
Minimum DC Current Measurement
400 A
DC Current Measurement Resolution
10 mA
Diode Test
Yes
Auto Ranging
Yes
Frequency Measurement Resolution
0.001 Hz
AC Voltage Measurement Resolution
0.1 mV
Minimum Resistance Measurement
400 ohm
Minimum Capacitance Measurement
400 nF
Peak Hold
Yes
Resistance Measurement Resolution
0.01 ohm
Non-Contact Voltage Detector
Yes
Auto Power Off
Yes
DC Voltage Measurement Resolution
0.1 mV
Memory
40,000 Readings
Basic DC Current Accuracy
+/-1.5%
Jaw Style
Clamp On
Standards
CE, ETL
Maximum DC Current Measurement
600 A
Basic AC Voltage Accuracy
+/-2.0%
Frequency Measurement Accuracy
+/-0.1%
Capacitance Measurement Accuracy
+/-3.0%
Thermal Imaging
No
Waterproof
No
Intrinsically Safe
No
Basic DC Voltage Accuracy
+/-1.5%
Dustproof
Yes
Current Leakage Testing
No
Removable Screen
No
Resistance Measurement Accuracy
+/-1.5%
IP Rating
IP40
Bluetooth Compatible
No

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 600 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement 600 A, Maximum DC Voltage Measurement 600 V, Current Leakage Testing No, IP Rating IP40, Parameters Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Frequency, Low Input Impedance, Low Pass Filter, Resistance, Temperature, Intrinsically Safe No
