  5. Digital Clamp Meter, Backlit LCD, 400 A, 1.2 in (30 mm) Jaw Capacity, CAT III 600V Safety Rating

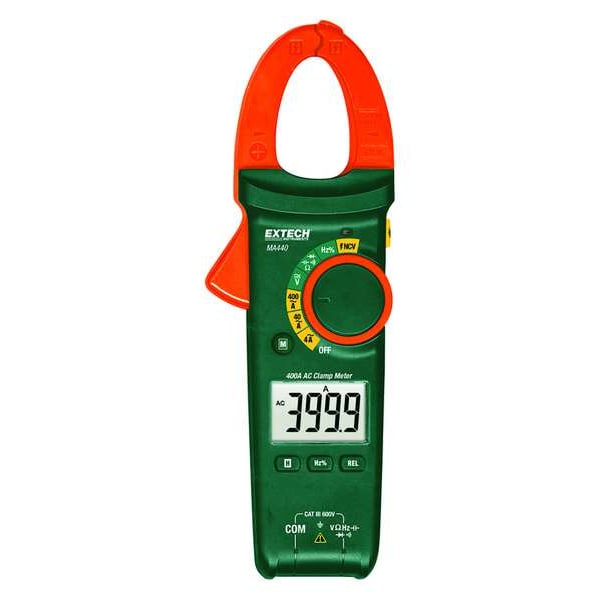

Extech Digital Clamp Meter, Backlit LCD, 400 A, 1.2 in (30 mm) Jaw Capacity, CAT III 600V Safety Rating MA440 - main

Digital Clamp Meter, Backlit LCD, 400 A, 1.2 in (30 mm) Jaw Capacity, CAT III 600V Safety Rating

  • Mfr # MA440

  • Zoro # G5822271

product price:  $62.99
/ea

Key Features

Digital/Analog
Digital
Max. AC Amps
400
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
40 megaohm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MA440
Zoro #
G5822271
UPC #
793950374405
Country of Origin
China

Dimensions

Max. Conductor Size
500 kcmil
Manufacturers Warranty Length
2 yr
Maximum Conductor Size
500MCM
Overall Width
3 in
Overall Height
1.6 in
Battery Size
AAA

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
400
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
40 megaohm
Jaw Capacity
1.2 in (30 mm)
Safety Rating
CAT III 600V
Display
Backlit LCD
Jaw Opening
1.2 in
Max. DC Amps
No Range
Max. AC Volts
600 V
Calibration Frequency
50 to 60 Hz
Operating Temp.
32 Degrees to 122 Degrees F
Inrush
No
Standards
CE, ETL
Auto Power Off
Yes
Audible Continuity
Yes
Counts
4,000
Diode Test
Yes
Frequency Counter
1 MHz
AC Current Accuracy
+/-2%
Auto Ranging
Yes
Non-Contact Voltage Detector
Yes
Battery Type
AAA
Capacitance
100 uF
Bar Graph
No
Peak Hold
No
Data Hold
Yes
Includes
(3) AAA Batteries, Pouch, Test Leads
Calibration Certificate
Not Included
AC Response
Average
Special Features
1.2" (30mm) jaw size fits conductors up to 500MCM, Built-In Non-Contact Voltage Detector (NCV), Large backlit LCD display, Relative mode for Capacitance, Data Hold, Auto Power Off and Low Battery Indicator
Data Logging
Yes
Minimum Storage Temperature
-4 Degrees F
Maximum DC Voltage Measurement
600 V
Capacitance Measurement Accuracy
+/-10.00%
Inrush Current Measurable
No
Bar Graph Included
No
Thermal Imaging
No
Maximum AC Current Measurement
400 A
Maximum AC Voltage Measurement
600 V
Intrinsically Safe
No
Minimum DC Voltage Measurement
400 mV
Minimum Capacitance Measurement
40 nF
Current Leakage Testing
No
Batteries Included
Yes
Minimum Operating Temperature
32 Degrees F
Maximum Storage Temperature
140 Degrees F
Resistance Measurement Resolution
0.1 ohm
Basic AC Voltage Accuracy
+/-1.20%
Dustproof
No
Removable Screen
No
AC Response Calculation
TRMS
Waterproof
No
Frequency Measurement Accuracy
+/-0.10%
AC Current Measurement Resolution
1 mA
AC Voltage Measurement Resolution
1 mV
Maximum Frequency Measurement
1 MHz
Bluetooth Compatible
No
Minimum AC Voltage Measurement
4 V
Capacitance Measurement Resolution
0.01 nF
Basic AC Current Accuracy
+/-2.50%
Battery Access
Yes
Parameters Measured
AC Current, AC Voltage, Capacitance, Continuity, DC Voltage, Diode, Duty Cycle, Frequency, Resistance
Minimum Resistance Measurement
400 ohm
Basic DC Current Accuracy
+/-2.00%
Maximum Capacitance Measurement
100 uF
Resistance Measurement Accuracy
+/-2.00%
Frequency Measurement Resolution
0.01 Hz
Maximum Operating Temperature
122 Degrees F
Minimum AC Current Measurement
1 mA
Basic DC Voltage Accuracy
+/-1.00%
Maximum Resistance Measurement
40 megaohm
Display Type
Backlit LCD
Instrument Counts
4,000
DC Voltage Measurement Resolution
0.1 mV
Calibration Certificate Included
No
Minimum Frequency Measurement
10 Hz
Jaw Style
Clamp-Jaw

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 400 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement Not Applicable, Maximum DC Voltage Measurement 600 V, Current Leakage Testing No, Parameters Measured AC Current, AC Voltage, Capacitance, Continuity, DC Voltage, Diode, Duty Cycle, Frequency, Resistance, Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging Yes
