  5. Digital Clamp Meter, LCD, 1,500 A, 2.0 in (51 mm) Jaw Capacity, CAT IV 600V Safety Rating

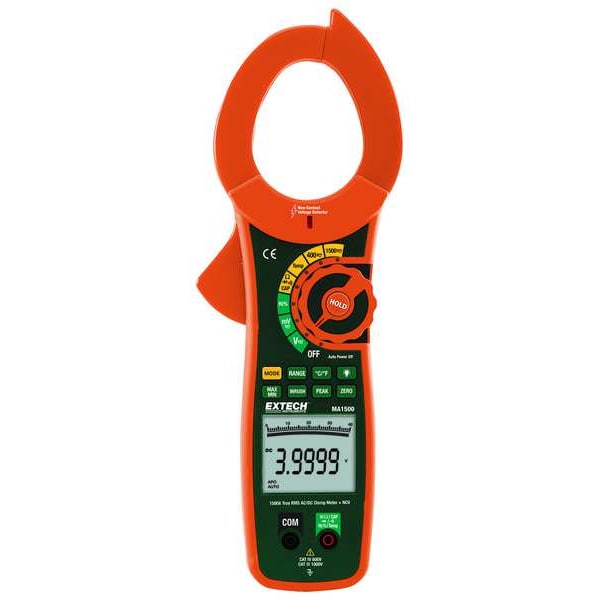

Extech Digital Clamp Meter, LCD, 1,500 A, 2.0 in (51 mm) Jaw Capacity, CAT IV 600V Safety Rating MA1500 - main

Digital Clamp Meter, LCD, 1,500 A, 2.0 in (51 mm) Jaw Capacity, CAT IV 600V Safety Rating

  • Mfr # MA1500

  • Zoro # G2390306

product price:  $249.00
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Max. AC Amps
1,500
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
1,000 V
Max. Ohms
40 megaohm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MA1500
Zoro #
G2390306
UPC #
793950315002
Country of Origin
China

Dimensions

Manufacturers Warranty Length
2 yr
Max. Conductor Size
500 kcmil
Maximum Conductor Size
500MCM
Overall Width
4.1 in
Overall Height
1.9 in
Battery Size
9V

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
1,500
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
1,000 V
Max. Ohms
40 megaohm
Jaw Capacity
2.0 in (51 mm)
Temp. Range
-148 Degrees to 1832 Degrees F
Safety Rating
CAT IV 600V
Display
LCD
Jaw Opening
2 in
Max. DC Amps
1,500
Max. AC Volts
750 V
Calibration Frequency
50 to 60 Hz
Auto Ranging
Yes
Capacitance
40 nF
Operating Temp.
32 Degrees to 122 Degrees F
Memory
Max/Min
Data Hold
Yes
Special Features
2.0" (52mm) jaw size for conductors up to 500MCM, Built-in non-contact Voltage detector with LED alert, Data Hold, Peak Hold, MIN/MAX, and Auto Power Off, Dual 40,000/4000 count, backlit LCD display, Inrush function captures transients during motor startups, Relative Mode for Capacitance Zero and Offset Adjustment
AC Current Accuracy
+/-2.0% + 5 Digits
Thermometer Type
Type K Thermocouple
Frequency Counter
40 MHz
AC Response
TRMS
Auto Power Off
Yes
Battery Type
9V
Audible Continuity
Yes
Includes
Carrying Case, Test Leads, Type K Bead Wire Temperature Probe
Counts
4,000, 40,000
Non-Contact Voltage Detector
Yes
Peak Hold
Yes
Data Logging
Yes
Standards
CE
Diode Test
Yes
Maximum Resistance Measurement
40 megaohm
Intrinsically Safe
No
Bluetooth Compatible
No
Basic DC Current Accuracy
+/-2.50%
Inrush Current Measurable
Yes
AC Current Measurement Resolution
0.01 A
Minimum Frequency Measurement
40 Hz
Frequency Measurement Accuracy
+/-0.30%
Resistance Measurement Accuracy
+/-3.00%
Minimum Operating Temperature
41 Degrees F
Basic AC Current Accuracy
+/-2.80%
Minimum DC Voltage Measurement
400 mV
Basic AC Voltage Accuracy
+/-1.00%
Maximum Operating Temperature
104 Degrees F
Minimum Resistance Measurement
400 ohm
AC Response Calculation
TRMS
Maximum Frequency Measurement
40 MHz
Dustproof
No
Battery Access
Yes
Minimum AC Current Measurement
400 A
Maximum Capacitance Measurement
40 mF
Minimum Storage Temperature
-4 Degrees F
Maximum DC Current Measurement
1,500 A
Calibration Certificate Included
No
Maximum DC Voltage Measurement
1,000 V
Capacitance Measurement Resolution
0.01 nF
Removable Screen
No
Display Type
Backlit LCD
Parameters Measured
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Inrush AC Current, Resistance, Temperature (K)
Batteries Included
Yes
Waterproof
No
Minimum DC Current Measurement
400 A
DC Voltage Measurement Resolution
0.01 mV
AC Voltage Measurement Resolution
0.01 mV
Maximum Storage Temperature
140 Degrees F
Maximum AC Voltage Measurement
750 V
Thermal Imaging
No
Basic DC Voltage Accuracy
+/-0.50%
Capacitance Measurement Accuracy
+/-5.00%
Resistance Measurement Resolution
0.01 ohm
Instrument Counts
4,000/40,000
DC Current Measurement Resolution
0.01 A
Minimum AC Voltage Measurement
400 V
Current Leakage Testing
No
Maximum AC Current Measurement
1,500 A
Jaw Style
Clamp-Jaw
Frequency Measurement Resolution
0.001 Hz

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT IV 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 1,500 A, Maximum AC Voltage Measurement 750 V, Maximum DC Current Measurement 1,500 A, Maximum DC Voltage Measurement 1,000 V, Current Leakage Testing No, Parameters Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Inrush AC Current, Resistance, Temperature (K), Intrinsically Safe No, Dustproof No
