Shop EXTECH

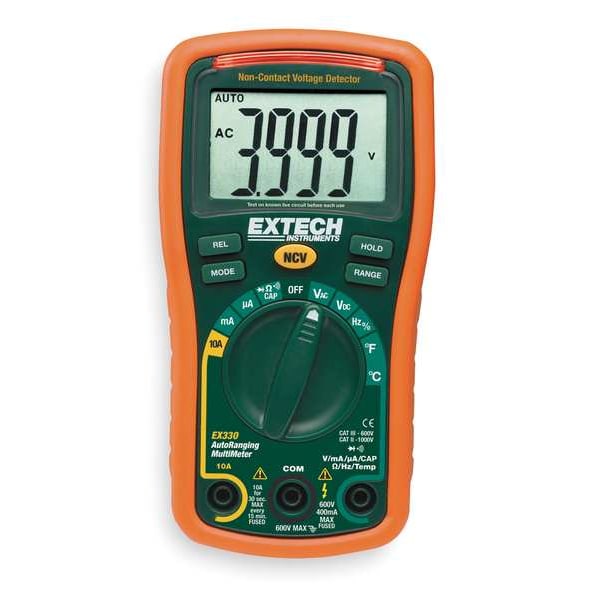

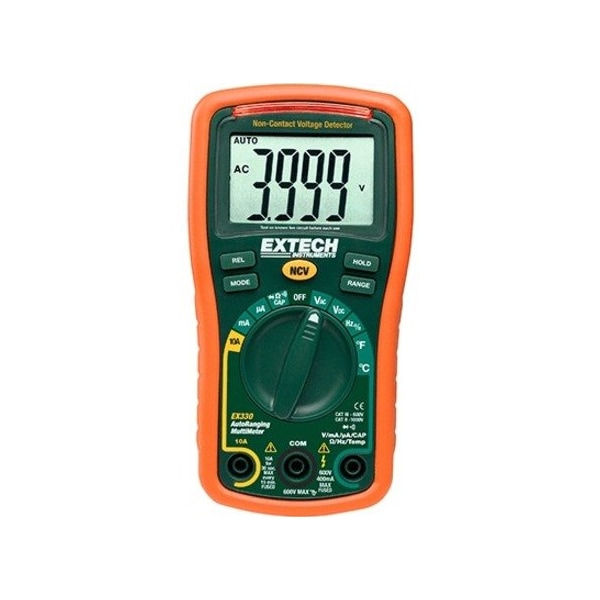

Digital Multimeter, 600 V Max DC, 0.1 V Max AC, Average, 4,000 Instrument Counts, LCD

  • Mfr # EX330

  • Zoro # G0860492

product price:  $74.99
/ea

Key Features

Display Type
LCD
Data Hold
Yes
Instrument Counts
4,000
Includes
(2) Batteries, Type K Bead Wire Temperature Probe, Protective Holster, Test Leads, Tilt Stand
Standards
CE, cULus
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EX330
Zoro #
G0860492
UPC #
793950393307
Country of Origin
China

Dimensions

Manufacturers Warranty Length
2 yr
Depth
1.6 in
Overall Width
2.9 in
Overall Height
5.7 in
Battery Size
AAA
Pulse Width
Yes

Details

Item
Digital Multimeter
Display Type
LCD
Data Hold
Yes
Instrument Counts
4,000
Includes
(2) Batteries, Type K Bead Wire Temperature Probe, Protective Holster, Test Leads, Tilt Stand
Standards
CE, cULus
Auto Power Off
Yes
Data Logging
No
Audible Continuity
Yes
Diode Test
Yes
Max. Ohms
40 megohm
Peak Hold
No
Instrument Frequency Counter Range
0.001 Hz to 10 MHz
Max. AC Amps
10:00 AM
AC Response
Average
Series
EXTECH (R) EX330
Max. DC Amps
10 A
Interface
None
Duty Cycle
Duty Cycle Test Included
Capacitance Range
1 pF to 200 uF
Basic DC Accuracy
+/-0.50% of Reading +2 Digits
Auto Ranging
Yes
Temp. Range
-4 Degrees to 1382 Degrees F
Multimeter Style
Compact - Basic Features
Instrument Safety Rating
CAT II 1000V, CAT III 600V
Display
LCD
Calibration Certificate Included
No Certification Included
Intrinsically Safe
No
Weight
9.17 oz
AC Current Measurement Resolution
0.1 uA
Current Leakage Testing
No
Resistance Measurement Accuracy
+/-1.2%
Minimum AC Current Measurement
0 uA
Minimum Resistance Measurement
0.1 ohm
Removable Screen
No
Minimum DC Current Measurement
0 uA
AC Response Calculation
Average
Maximum Storage Temperature
140 Degrees F
Minimum Temperature Measurement
-4 Degrees F
Maximum AC Current Measurement
10 A
Basic AC Current Accuracy
+/-0.5%
Software Included
No
Minimum Storage Temperature
-4 Degrees F
Maximum Frequency Measurement
10 MHz
DC Voltage Measurement Resolution
0.1 V
Maximum Temperature Measurement
1,382 Degrees F
Battery Access
Yes
Bluetooth Compatible
No
Capacitance Measurement Resolution
0 nF
Resistance Measurement Resolution
0.1 ohm
Frequency Measurement Accuracy
+/-0.50%
Minimum DC Voltage Measurement
0 mV
Battery Chemistry
Alkaline
Minimum Capacitance Measurement
0 nF
Batteries Included
Yes
Minimum Operating Temperature
32 Degrees F
Basic AC Voltage Accuracy
+/-0.5%
Maximum DC Current Measurement
10 A
Dustproof
No
Minimum AC Voltage Measurement
0 mV
Temperature Measurement Resolution
1 Degrees F
Basic DC Current Accuracy
+/-2.5%
Capacitance Measurement Accuracy
+/-0.50%
Fuse Access
Yes
Waterproof
No
Maximum AC Voltage Measurement
600 V
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
AC Voltage Measurement Resolution
0.1 V
Frequency Measurement Resolution
0 Hz
Maximum Resistance Measurement
40 megaohm
Minimum Frequency Measurement
0 Hz
Maximum Operating Temperature
122 Degrees F
DC Current Measurement Resolution
0.1 uA
Maximum Capacitance Measurement
200 uF
Basic DC Voltage Accuracy
+/-0.50%
Computer Interface Connection Type
None
Battery Voltage
1.5 V
Thermal Imaging
No
NIST Certification By Manufacturer
Not Certified
Maximum DC Voltage Measurement
600 V
Bar Graph Included
No
Temperature Measurement Accuracy
+/-3.00%
Temperature Types Measured
Temperature Degrees C, Temperature Degrees F
CAT Safety Rating
CAT II 1000V, CAT III 600V
Current Units
A, mA, uA
Special Features
10A Max Current, AC/DC Voltage & Current, Resistance, Capacitance, Frequency, Temperature, Duty Cycle, Diode/Continuity, Autoranging DMM with 12 Functions and 0.5% Basic Accuracy, Built-In Non-Contact AC Voltage Detector (Ncv) with Red LED Indicator and Audible Beeper, Complete with Test Leads, Tilt Stand, Protective Holster, General Purpose Type K Bead Wire Probe and 2 AAA Batteries, Data Hold, Relative and Auto Power Off, Large-Digit 4,000 Count LCD Display, Type K Temperature Measurements
Includes Auto Sensing
No Auto Sensing Included
Voltage Units
mV, V
IP Rating
Not Rated

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-0.5 Percent, Basic DC Voltage Accuracy +/-0.50 Percent, Data Hold Yes, Basic DC Current Accuracy +/-2.5 Percent, Instrument Safety Rating CAT II 1000V, CAT III 600V, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 600 V, Instrument Counts 4,000
