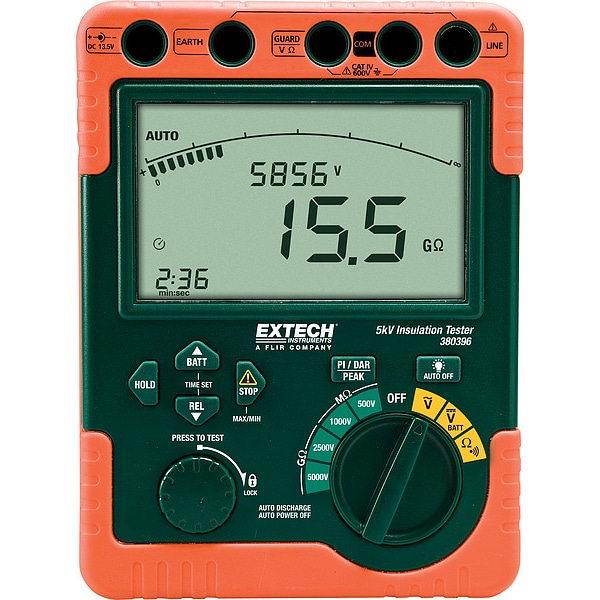

Extech Insulation Tester, High Voltage, 220V 380396 - main

Insulation Tester, High Voltage, 220V

  • Mfr # 380396

  • Zoro # G811935109

product price: $1,048.99
/ea
Free Shipping & Returns

Key Features

Power Source
AC Adapter, Battery
Includes
(8) C Batteries, 220V AC Adaptor, Carrying Case, Test Leads
Alert Type
Digital Display
Minimum Insulation Resistance
6 megaohm
Display Type
Digital
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
380396
Zoro #
G811935109
UPC #
793950803967
Country of Origin
China

Dimensions

Manufacturer Warranty Length
2 yr
Tool Length
5.8 in
Tool Height
7.8 in
Tool Width
3.4 in
Battery Size
C

Details

Item
Insulation Tester
Power Source
AC Adapter, Battery
Includes
(8) C Batteries, 220V AC Adaptor, Carrying Case, Test Leads
Alert Type
Digital Display
Minimum Insulation Resistance
6 megaohm
Display Type
Digital
Maximum Insulation Resistance
600 megaohm
Low Resistance Range
0 to 600 ohm
Number of Batteries Required
8
Maximum AC Voltage Measured
600 V
Standards
CE
Resistance Accuracy
+/-2.50%
Includes Batteries
Yes
Test Voltage
1,000V DC, 2,500V DC, 5,000V DC, 500V DC
Features
1 to 15 minute Timer Function for IR Measurements, Dielectric Absorption Ratio, Peak and Relative Functions, Polarization Index
Calibration Certificate
Available Separately
Minimum DC Voltage Measured
0 V
CAT Safety Rating
CAT IV 600V
Insulation Resistance Resolution
6 megaohm to 600 megaohm
Auto Ranging
Yes
Minimum AC Voltage Measured
0 V
PI/DAR Testing
Yes
Testing Functions
AC/DC Voltage, Insulation
Operating Voltage
220V AC
Auto Power Off
Yes
Maximum DC Voltage Measured
600 V
Parameters Measured
AC Voltage, DC Voltage, Insulation Resistance
Backlit Digital Display
Yes
Display Screen Type
LCD with Backlight
Dustproof
No
Pass/Fail Selection Limits
Yes
USB Data Download Included
No
Timed Ramp Voltage Test
Yes
Capacitance Auto Discharge
Yes
Greater Than 30V Warning
Yes
Test Current
200 mA
Waterproof
No
Bluetooth Compatible
No
Remote Test Probe Included
No
Insulation Limit Alarm
Yes

Description

Insulation Tester, Backlit Digital Display Yes, Bluetooth Compatible No, CAT Safety Rating CAT IV 600V, Calibration Certificate Available Separately, Capacitance Auto Discharge Yes, Display Type Digital, Dustproof No, Greater Than 30V Warning Yes, Includes (8) C Batteries, 220V AC Adaptor, Carrying Case, Test Leads, Insulation Limit Alarm Yes, Maximum Insulation Resistance 600 megaohm, Minimum Insulation Resistance 6 megaohm, PI/DAR Testing Yes
