Item

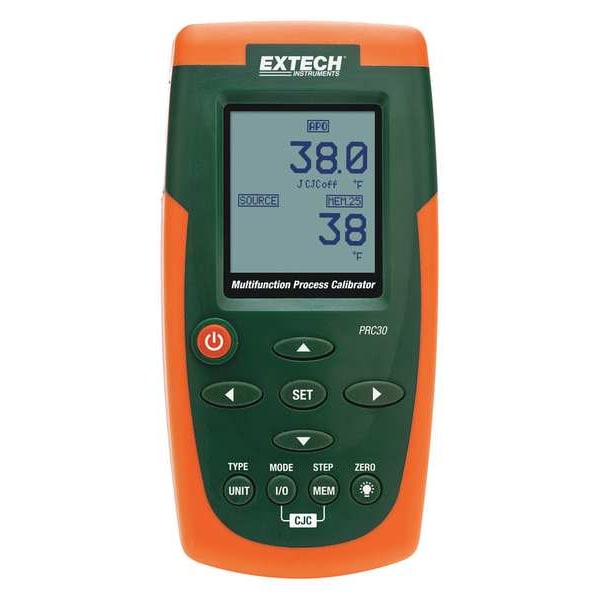

Handheld Temperature Calibrator
Includes
100 to 240V Universal AC Adapter, Batteries, Calibration Cable, Carrying Case, Instructions
Loop Supply Voltage
24V DC
Accuracy
Dependent on Thermocouple Type
Powered By
(6) AA Batteries or 100 to 240V Universal AC Adapter
Current Measurement Range
0 to 50mADC
Source Current
0 to 24mADC
Thermocouple Type
J, K, T, C, E, N, R and S
Source Voltage
0 to 20V DC
Voltage Measurement Range
0 to 20V DC
Source/Simulate
T, mV, mA
Thermocouple Temperature Range
-58 Degrees to 2498 Degrees F (Dependent on Thermocouple Type)
Measurement Functions
Current, Temperature, Voltage
Thermocouple Temperature Range F
-58 Degrees to 2,498 Degrees F
Temperature Accuracy
+/-0.05% +2 Degrees F/1 Degrees C
Sensor Maximum Temperature F
3,182 Degrees F (Type C), 1,382 Degrees F (Type E), 1,832 Degrees F (Type J), 2,498 Degrees F (Type K), 2,732 Degrees F (Type N), 3,182 Degrees F (Type R), 3,182 Degrees F (Type S), 752 Degrees F (Type T)
Accuracy - Source
+/-0.01% +1 Digit, +/-0.05% +2 Degrees F/1 Degrees C
Calibration Details
Data at 0 Degrees C, 100 Degrees C, 500 Degrees C, 750 Degrees C, and 1,000 Degrees C
Sensor Temperature Range
-184 Degrees to 752 Degrees F/-120 Degrees to 400 Degrees C (Type T), -58 Degrees to 1,382 Degrees F/-50 Degrees to 750 Degrees C (Type E), -58 Degrees to 1,832 Degrees F/-50 Degrees to 1,000 Degrees C (Type J), -58 Degrees to 2,498 Degrees F/-50 Degrees to 1,370 Degrees C (Type K), -58 Degrees to 2,732 Degrees F/-50 Degrees to 1,300 Degrees C (Type N), 32 Degrees to 3,182 Degrees F/0 Degrees to 1,750 Degrees C (Type C), 32 Degrees to 3,182 Degrees F/0 Degrees to 1,750 Degrees C (Type R), 32 Degrees to 3,182 Degrees F/0 Degrees to 1,750 Degrees C (Type S)
Sensor Maximum Temperature C
1,750 Degrees C (Type C), 750 Degrees C (Type E), 1,000 Degrees C (Type J), 1,370 Degrees C (Type K), 1,300 Degrees C (Type N), 1,750 Degrees C (Type R), 1,750 Degrees C (Type S), 400 Degrees C (Type T)
For Thermocouple Type
Type C, Type E, Type J, Type K, Type N, Type R, Type S, Type T
Sensor Minimum Temperature F
32 Degrees F (Type C), -58 Degrees F (Type E), -58 Degrees F (Type J), -58 Degrees F (Type K), -58 Degrees F (Type N), 32 Degrees F (Type R), 32 Degrees F (Type S), -184 Degrees F (Type T)
Thermocouple Temperature Range C
-50 Degrees to 1,750 Degrees C
Display Functions
Degrees C/ Degrees F Switchable, Datalogging
Millivolt Accuracy
+/-0.01% +1 Digit
Probe Connection Type
Mini Thermocouple Connector, Standard Banana I/O Ports
Accuracy - Measure
+/-0.01% +1 Digit, +/-0.05% +2 Degrees F/1 Degrees C
Includes NIST-Traceable Certificate
No
Temperature Range
-58 Degrees to 2498 Degrees F/-50 Degrees to 1,750 Degrees C
Millivolt Range
-5 to 55mV
Sensor Minimum Temperature C
0 Degrees C (Type C), -50 Degrees C (Type E), -50 Degrees C (Type J), -50 Degrees C (Type K), -50 Degrees C (Type N), 0 Degrees C (Type R), 0 Degrees C (Type S), -120 Degrees C (Type T)
Sensor Maximum Temperature °F
3,182 Degrees F (Type C), 1,382 Degrees F (Type E), 1,832 Degrees F (Type J), 2,498 Degrees F (Type K), 2,732 Degrees F (Type N), 3,182 Degrees F (Type R), 3,182 Degrees F (Type S), 752 Degrees F (Type T)
Sensor Maximum Temperature °C
1,750 Degrees C (Type C), 750 Degrees C (Type E), 1,000 Degrees C (Type J), 1,370 Degrees C (Type K), 1,300 Degrees C (Type N), 1,750 Degrees C (Type R), 1,750 Degrees C (Type S), 400 Degrees C (Type T)
Sensor Minimum Temperature °F
32 Degrees F (Type C), -58 Degrees F (Type E), -58 Degrees F (Type J), -58 Degrees F (Type K), -58 Degrees F (Type N), 32 Degrees F (Type R), 32 Degrees F (Type S), -184 Degrees F (Type T)
Sensor Minimum Temperature °C
0 Degrees C (Type C), -50 Degrees C (Type E), -50 Degrees C (Type J), -50 Degrees C (Type K), -50 Degrees C (Type N), 0 Degrees C (Type R), 0 Degrees C (Type S), -120 Degrees C (Type T)
