Shop EXTECH

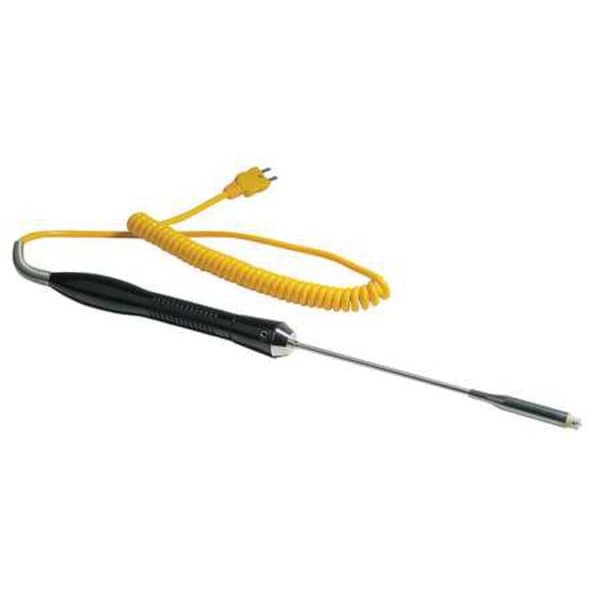

Thermocouple Probe, Mini Plug, Type K

  • Mfr # 881602
  • Zoro # G4544732
product price:
$
99.99
/ea
Zoro's best price: not eligible for any other offers or promotions

Key Features

Sensor Type
Thermocouple
Temp. Range (F)
-40 Degrees to 932 Degrees F
Temp. Range (C)
-40 Degrees to 500 Degrees
Probe Length
5.7 in
Primary Measuring Element
Thermocouple
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
881602
Zoro #
G4544732
UPC #
793950886021
Country of Origin
Taiwan, Province of China

Dimensions

Probe Length
5.7 in
Probe Wire Length
5 ft 11 in
Wire Length
5 ft. 11"
Manufacturers Warranty Length
6 mo
Probe Dia.
27/86 in
Probe Diameter
0.313 in
Cable Length
70.8 in (Coiled)
Manufacturer Warranty Length
6 mo
Probe Tip Diameter
0.313 in
Probe Size
5/16 in x 5.7 in

Details

Item
Surface Temperature Probe
Sensor Type
Thermocouple
Temp. Range (F)
-40 Degrees to 932 Degrees F
Temp. Range (C)
-40 Degrees to 500 Degrees
Primary Measuring Element
Thermocouple
Probe Temp. Measuring Element
K Thermocouple
Probe Connector
Mini
Probe Connection Type
Type K Mini
Probe Contact Material
304 Stainless Steel
Accuracy
+/-0.2 Degrees C, +/-0.4 Degrees F
Use
Air or Liquids
Response Time
Less Than 2 sec
Probe Material
304 Stainless Steel
Temperature Measuring Element
K Thermocouple
Includes
Probe with Cable and Thermocouple Connector
Maximum Temperature C
500 Degrees C
Tip Style
Rounded
Minimum Temperature F
-40 Degrees F
For Surfaces
No
For Application
Air, Liquid
Maximum Temperature F
932 Degrees F
For Solids
No
Probe Bend
Straight
Includes Thermowell
No
Thermocouple Type
Type K
Minimum Temperature C
-40 Degrees C
Head Material
304 Stainless Steel
For Gases
No
For Air
Yes
For Liquids and Gels
Yes
Temperature Range
-40 Degrees to 932 Degrees F/-40 Degrees to 500 Degrees C
Connector Type
Mini Plug
Maximum Temperature °C
500 Degrees C
Maximum Temperature °F
932 Degrees F
Minimum Temperature °C
-40 Degrees C
Minimum Temperature °F
-40 Degrees F
Minimum Temperature °F
-40 Degrees F
Maximum Temperature °C
500 Degrees C
Maximum Temperature °F
932 Degrees F
Minimum Temperature °C
-40 Degrees C
Maximum Temperature (°F)
932 Degrees F
Junction Type
Exposed
Handle Type
Straight
Cable Material
Polyurethane
Maximum Temperature (°C)
500 Degrees C
For Media Type
Surfaces
Probe Sheath Material
304 Stainless Steel

Description

Surface Temperature Probe, Type K, For Application Air, Liquid, Mini Plug, Probe Size 5/16 in x 5.7 in, Cable Length 70.8 in (Coiled), -40 Degrees to 932 Degrees F/-40 Degrees to 500 Degrees C, Thermocouple
