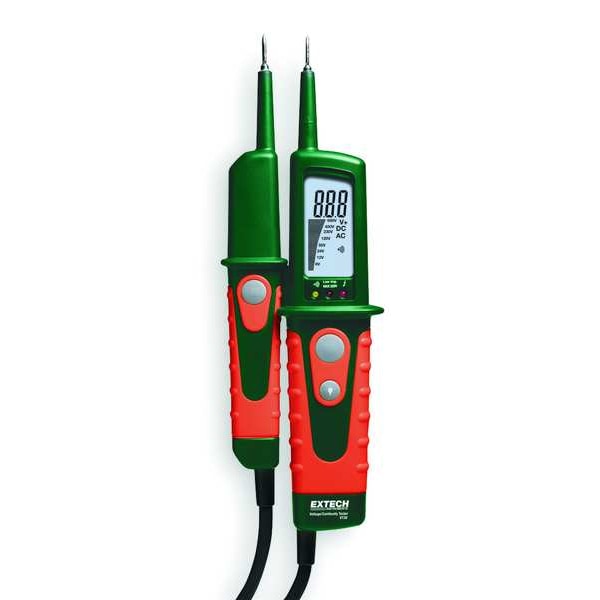

Voltage and Continuity Tester, 690 V Max DC, 0 V Max AC, Digital

Mfr # VT30
Zoro # G0359755

118.99

Free Shipping & Returns

Zoro's best price: not eligible for any other offers or promotions

Key Features

Display Type

Digital

Includes

Pouch Case, Protective Cap

Standards

Audible Continuity

Yes

AC Voltage Range

0 to 480

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: VT30
Zoro #: G0359755
UPC #: 793950710302
Country of Origin: China

Dimensions

Manufacturers Warranty Length: 1 yr
Battery Size: AAA
Tool Length: 9.4 in
Manufacturer Warranty Length: 1 yr
Tool Height: 3 in
Tool Width: 1.6 in
Length: 9.4 in
Overall Width: 1.6 in
Overall Height: 3 in

Details

Item: Voltage and Continuity Tester
Display Type: Digital
Includes: Pouch Case, Protective Cap
Standards: CE
Audible Continuity: Yes
AC Voltage Range: 0 to 480
DC Voltage Range: 0 to 690
Flashlight: Yes
Basic DC Accuracy: +/-1%
Calibration Frequency: 50 to 60 Hz
Non-Contact Voltage Detector: Yes
Auto Ranging: Yes
Low Impedance: Yes
Type: Voltage Detector/Tester
Features: Phase Rotation Test for Motors, Polarity Detection with LEDs for Positive and Negative DC, Two Handed Operation for Low Impedance Testing
Power Source: Battery
IP Rating: IP64
Battery Chemistry: Alkaline
Alert Type: Digital Display, Light, Audible
Maximum DC Voltage Measured: 690 V
Built-In Flashlight: Yes
Maximum Resistance Measured: 200 kiloohm
Test Connection Type: Probe Tip
Testing Functions: AC Voltage, Continuity, DC Voltage, Phase Rotation
Number of Batteries Required: 2
Tester Type: Voltage and Continuity Tester
For Phase: Three
AC Voltage Accuracy: +/-1.50% + 5 digits
DC Voltage Accuracy: +/-1.00% +3 digits
Maximum AC Voltage Measured: 480 V
Continuity Confirmation: 0 to 200 kiloohm
Display Screen Type: LCD
Non-Contact: No
Minimum Operating Temperature: 14 Degrees F
CAT Safety Rating: CAT III 600V, CAT IV 600V
Includes Batteries: Yes
Minimum DC Voltage Measured: 0 V
Minimum AC Voltage Measured: 0 V
Maximum Operating Temperature: 131 Degrees F
Maximum AC Voltage Measurement: 480 V
Maximum DC Voltage Measurement: 690 V
Minimum AC Voltage Measurement: 0 V
Minimum DC Voltage Measurement: 0 V
Batteries Included: Yes
Maximum Resistance Measurement: 200 kiloohm
Maximum Current Measured: 1.5 mA
Power Source - TS Only: Battery
Power Source - old: Battery

Description

Voltage and Continuity Tester, Alert Type Digital Display, Light, Sound, Built-In Flashlight Yes, CAT Safety Rating CAT III 600V, CAT IV 600V, Cable Length Not Applicable, Display Type Digital, Includes Pouch Case, Protective Cap, Maximum AC Voltage Measured 480 V, Maximum DC Voltage Measured 690 V, Non-Contact No, Test Connection Type Probe Tip, Testing Functions AC Voltage, Continuity, DC Voltage, Phase Rotation
