Fasco

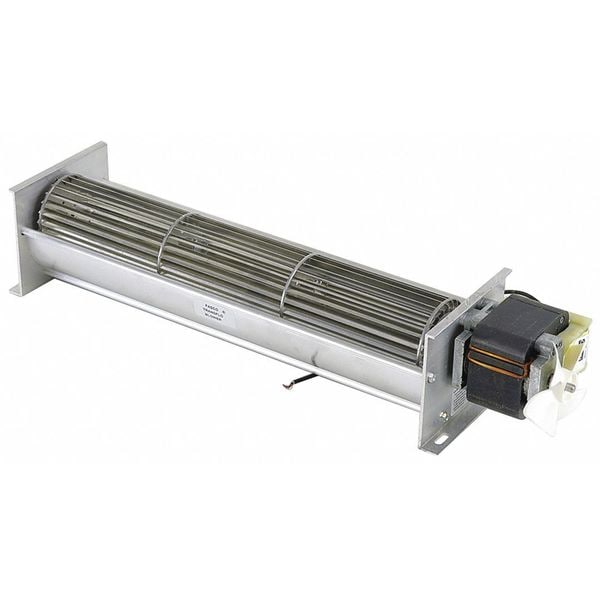

Blower, 115V, 2780 rpm, 215 cfm, 1 SPDT

product price: $267.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Phase 1
  • Standards CSA Certified, UL Listed
  • Frequency 60 Hz
  • Fits Brand Fasco
  • Features 12 to 10 in Lead with Strip, C-Frame, Class B Insulation and 40 Degrees C Ambient, Open Air Over, Shaded Pole, Sleeve Bearing, Thermally Protected
See all product information

Product Information

Dimensions

Flange Size 2.5in
Wheel Width 13 in
Overall Width 4 1/8 in
Outlet Width 14 3/4 in
Overall Height 3 1/2 in
Wheel Diameter 2 1/2 in
Housing Depth 17.7 in
Overall Depth 17 3/4 in
Outlet Height 1 5/8 in
Housing Height 3.5 in
Housing Width 4.2 in
Inlet Diameter 2 5/8 in

Details

Item Blower, 115V, 2780 rpm, 215 cfm, 1 SPDT
Phase 1
Standards CSA Certified, UL Listed
Frequency 60 Hz
Fits Brand Fasco
Features 12 to 10 in Lead with Strip, C-Frame, Class B Insulation and 40 Degrees C Ambient, Open Air Over, Shaded Pole, Sleeve Bearing, Thermally Protected
Flange Type Flanged
Motor Speed 2,800 RPM
Includes Drive Package Yes
Number of Inlets 1
Motor Insulation Class B
High-Efficiency Motor No
Drive Type Direct Drive
Thermal Overload Protection Yes
Airflow @ 0.100 in SP 196 cfm
Maximum Static Pressure 1/8 in wc
Airflow @ 0.200-In. SP 70 cfm
Airflow @ 0.250 in SP 70 cfm
Housing Material Steel
Wheel Material Aluminum
Bearing Type Sleeve
Motor Type Shaded Pole
Maximum Ambient Temperature 40 Degrees C
Motor Horsepower 1/40 hp
Nameplate Voltage 115V AC
Airflow @ 0.000 in SP 215 cfm
Rotation CW
Current 1.3 A
Number of Speeds 1
Assembly Unassembled
Outlet Shape Rectangular
Includes Motor Yes
Blower Type Transflow Blower

Description

Blower, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Unassembled, Wheel Diameter 2 1/2 in, Airflow @ 0.000 in SP 215 cfm, Airflow @ 0.100 in SP 196 cfm, Airflow @ 0.200-In. SP 70 cfm, Airflow @ 0.250 in SP 70 cfm, Maximum Static Pressure 1/8 in wc, Bearing Type Sleeve, Wheel Material Aluminum, Housing Material Steel, Wheel Width 13 in, Number of Inlets 1, Inlet Diameter 2 5/8 in, Outlet Shape Rectangular, Outlet Height 1 5/8 in, Outlet Width 14 3/4 in, Flange Type Flanged
